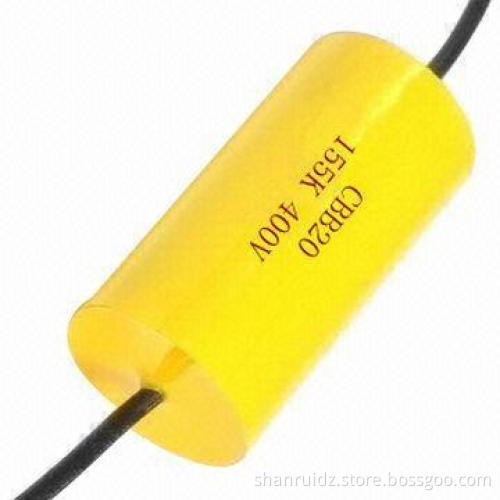

Metalized Polypropylen Film Capacitor, Axia Shape for PVC Wire

Metalized Polypropylen Film Capacitor, Axia Shape for PVC Wire

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,L/C

Product Description

Constructions:

Non-inductively wound with metalized polypropylene film asdielectric/electrode and copper-clad steel leads or flexible cordand outer wrapping with polyester adhesive tape and end sealed withepoxy resin

Specifications:

Climate conditions: -40 to 85/110°C
Rated voltages: 100, 250, 400 and 630V
Capacitance range: 0.010 to 33¼F
Capacitance tolerance: ±5% (J) ±10% (K)
Voltage proof: 1.6UR (5S)
Dissipation factor: d0.0010 1KHz 20°C
Temperature: 40 ±2°C
Humidity: 93% RH
Dissipation factor (1KHz):
- Increasing: d0.002
Applying voltage: 1.25 x rate voltage

Features:

Small sizes, lightweights with good self-healing effect
Non-inductive construction, down-leads axially andhorizontally
Very low-loss at high-frequency, suitable for high-current,could bear the high-current impactive
Have well voltage proof features under the frequency ACcurrent
High-insulation resistance, long life due to self-healingeffect
Good capacitance stability

Using area:

High-frequency, DC/AC and impulsion high-current conditions inheavy current such as filtering and impulse
Such as power amplifiers, welder machines and more would beused in the all CBB21 complaint conditions

Packing details:

Bulk package (loose in bag), paper box, the sizes of our boxesare 42 x 32 x 28, 54 x 36 x 28 or 56 x 36 x 29mm
We often pack 5, 10, 5 and 20Kpcs (according to the dimensionsof the products in each box)

Our services:

Your enquiry related to our products or prices will be repliedin 24 hours
Well trained and experienced staffs to answer all yourquestions in fluent English
Exclusive and unique solution can be provided to our customerby well-trained and professional engineers who have more than 30years experience
Customized design is available
High-quality and competitive price
Warranty: 5 years

Non-inductively wound with metalized polypropylene film asdielectric/electrode and copper-clad steel leads or flexible cordand outer wrapping with polyester adhesive tape and end sealed withepoxy resin

Climate conditions: -40 to 85/110°C

Rated voltages: 100, 250, 400 and 630V

Capacitance range: 0.010 to 33¼F

Capacitance tolerance: ±5% (J) ±10% (K)

Voltage proof: 1.6UR (5S)

Dissipation factor: d0.0010 1KHz 20°C

Temperature: 40 ±2°C

Humidity: 93% RH

Dissipation factor (1KHz):

Increasing: d0.002

Applying voltage: 1.25 x rate voltage

Increasing: d0.002

Small sizes, lightweights with good self-healing effect

Non-inductive construction, down-leads axially andhorizontally

Very low-loss at high-frequency, suitable for high-current,could bear the high-current impactive

Have well voltage proof features under the frequency ACcurrent

High-insulation resistance, long life due to self-healingeffect

Good capacitance stability

High-frequency, DC/AC and impulsion high-current conditions inheavy current such as filtering and impulse

Such as power amplifiers, welder machines and more would beused in the all CBB21 complaint conditions

Bulk package (loose in bag), paper box, the sizes of our boxesare 42 x 32 x 28, 54 x 36 x 28 or 56 x 36 x 29mm

We often pack 5, 10, 5 and 20Kpcs (according to the dimensionsof the products in each box)

Your enquiry related to our products or prices will be repliedin 24 hours

Well trained and experienced staffs to answer all yourquestions in fluent English

Exclusive and unique solution can be provided to our customerby well-trained and professional engineers who have more than 30years experience

Customized design is available

High-quality and competitive price

Warranty: 5 years
