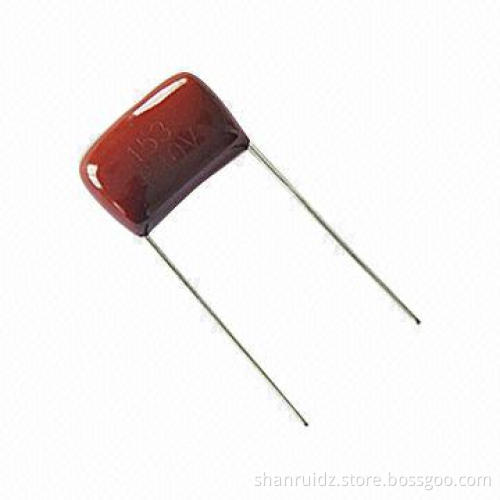

Film Foil Capacitor with Polypropylene Film Material and Very Low-loss at High-frequency

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union

Product Description

Specifications:

Rated voltage: 250, 400, 630 and 1,000V
Capacitance range: 0.001 to 0.47uF
Capacitance tolerance range: J (±5%) and K(±10%)
Electrode: aluminum foil
Material: polypropylene film
Dissipation factor tan´: d0.0008, 10kHz and 20
Testing voltage: 2.0uR (5 seconds)
Features: very low-loss at high-frequency could bear thehigh-current impact
Using areas: high-frequency, DC and impulse high-currentconditions, such as lamps, monitors, power supplier and more

Rated voltage: 250, 400, 630 and 1,000V

Capacitance range: 0.001 to 0.47uF

Capacitance tolerance range: J (±5%) and K(±10%)

Electrode: aluminum foil

Material: polypropylene film

Dissipation factor tan´: d0.0008, 10kHz and 20

Testing voltage: 2.0uR (5 seconds)

Features: very low-loss at high-frequency could bear thehigh-current impact

Using areas: high-frequency, DC and impulse high-currentconditions, such as lamps, monitors, power supplier and more

Send your message to this supplier
