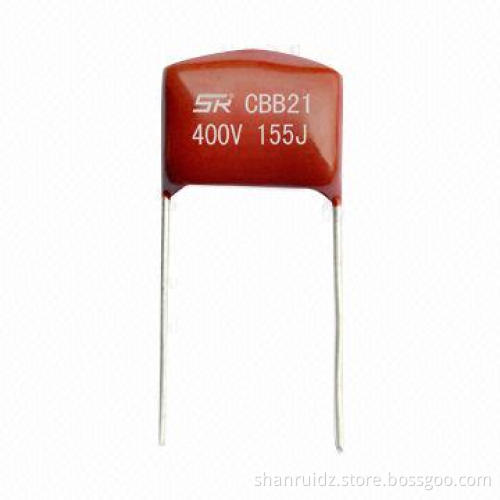

Metalized Polypropylene Capacitor with Good Self-healing Effect and Voltage-proof Function
  • Metalized Polypropylene Capacitor with Good Self-healing Effect and Voltage-proof Function
  • Metalized Polypropylene Capacitor with Good Self-healing Effect and Voltage-proof Function
Metalized Polypropylene Capacitor with Good Self-healing Effect and Voltage-proof Function
Metalized Polypropylene Capacitor with Good Self-healing Effect and Voltage-proof Function

Metalized Polypropylene Capacitor with Good Self-healing Effect and Voltage-proof Function

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Climate condition: -40 to +85/110°C
    • Rated voltage: 100/250/400/630/1,000V
    • Capacitance range: 0.0010 to 8.2¼F
    • Capacitance tolerance: ±5 and ±10%
    • Testing voltage: 1.6U (5 seconds)
    • Capacitance tolerance: ±5% (J), ±10% (K),±20% (M) (1kHz)
  • Constructions:
    • Are non-inductively wound with metallized polypropylene film asthe dielectric/electrode with copper-clad
    • Steel leads and epoxy resin coating
    • Material: polypropylene film
    • Electrode: metallized vacuum evaporated layer (with complexingjumbo-size zinc and aluminum)
    • Case: PBT passive flammability plastic box
    • Encapsulation: passive flammability epoxy resin
    • Pin: CP leads
  • Features:
    • High-frequency and low-dissipation factor
    • Low-temperature rise inside
    • Small changes on capacitance and dissipation affected by thetemperature change
    • Excellent flame retardant
    • Excellent moisture-proof
    • Small size with good self-healing effect
    • Very low-loss at high-frequency, the low-temperature inchanging with high-impact
    • With voltage-proof features under the high-frequency ACcurrent
    • Suitable for AC brownout circuits and LED usage
  • Applications:
    • Widely used in high-frequency DC, AC and pulse circuit
    • Filtering circuit after rectified
  • Climate condition: -40 to +85/110°C
  • Rated voltage: 100/250/400/630/1,000V
  • Capacitance range: 0.0010 to 8.2¼F
  • Capacitance tolerance: ±5 and ±10%
  • Testing voltage: 1.6U (5 seconds)
  • Capacitance tolerance: ±5% (J), ±10% (K),±20% (M) (1kHz)
  • Are non-inductively wound with metallized polypropylene film asthe dielectric/electrode with copper-clad
  • Steel leads and epoxy resin coating
  • Material: polypropylene film
  • Electrode: metallized vacuum evaporated layer (with complexingjumbo-size zinc and aluminum)
  • Case: PBT passive flammability plastic box
  • Encapsulation: passive flammability epoxy resin
  • Pin: CP leads
  • High-frequency and low-dissipation factor
  • Low-temperature rise inside
  • Small changes on capacitance and dissipation affected by thetemperature change
  • Excellent flame retardant
  • Excellent moisture-proof
  • Small size with good self-healing effect
  • Very low-loss at high-frequency, the low-temperature inchanging with high-impact
  • With voltage-proof features under the high-frequency ACcurrent
  • Suitable for AC brownout circuits and LED usage
  • Widely used in high-frequency DC, AC and pulse circuit
  • Filtering circuit after rectified
