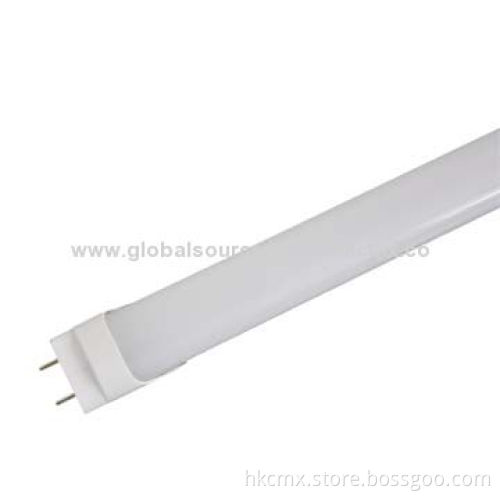

Super Bright Samsung Chip 10W 600mm T8 LED Tube Light, 80Ra CRI, 130lm/W

Super Bright Samsung Chip 10W 600mm T8 LED Tube Light, 80Ra CRI, 130lm/W

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Descriptions:

LED fluorescent tube as replacement of traditional fluorescent tube, energy saving reach to more than 80%
Compliant to the requirement of green environment, energy-saving, as well as the long lifespan requirement of Worldwide, about 5,000 hours
LED fluorescent tube will be the future illuminating lighting instead of the traditional fluorescent tubes
Elliptical tube, 100-220V AC input range, constant currency isolated driver

Specifications:

Stable caps, rotatable caps optional
Isolating circuit design
Input voltage range: 100-240V AC
Length: 600mm (2ft)
LED lighting source: 48 pieces of Epistar 2835 SMD LEDs
Power: 10W
Luminous flux range: 900-1,000lm
CRI: 80, 90Ra (optional)
Lifespan: 50,000 to 80,000 hours
Certificates: TUV, SAA, C-tick
Aluminum heat-sink body ensures long lifespan
Matte cover or line-shaped cover, no glare

Usage instructions:

Take the LED tubes out from package carefully
Check if the LED tubes are excellent without damage, do not try to use any damaged products
Read the label parameter carefully before installation and make sure the voltage and current are correct
Indoor use only
Do not vibrate tube
Do not disassemble the tube if have no authorization
Do not store tubes in humidity environment

Installation instructions:

Firstly please turn-off the power before install the LED tube
Take down the tradition fluorescent tube, cut-off or directly take off the starter and ballast from the tradition fluorescent tube fixture
Then, according below wiring diagram to connect the LED tube on the tradition fixture
Make sure everything are correctly and then turn on the power, the LED tube will light

Applications:

Offices, supermarkets, schools, hospitals, lobby, halls, square, parking and more

Packing:

Each LED tube packed in solo cardboard tube, then packed by paper carton
Quantity: 30 pieces/one carton
Size: 73 x 25 x 25cm
Gross weight: 6.5kg

LED fluorescent tube as replacement of traditional fluorescent tube, energy saving reach to more than 80%

Compliant to the requirement of green environment, energy-saving, as well as the long lifespan requirement of Worldwide, about 5,000 hours

LED fluorescent tube will be the future illuminating lighting instead of the traditional fluorescent tubes

Elliptical tube, 100-220V AC input range, constant currency isolated driver

Stable caps, rotatable caps optional

Isolating circuit design

Input voltage range: 100-240V AC

Length: 600mm (2ft)

LED lighting source: 48 pieces of Epistar 2835 SMD LEDs

Power: 10W

Luminous flux range: 900-1,000lm

CRI: 80, 90Ra (optional)

Lifespan: 50,000 to 80,000 hours

Certificates: TUV, SAA, C-tick

Aluminum heat-sink body ensures long lifespan

Matte cover or line-shaped cover, no glare

Take the LED tubes out from package carefully

Check if the LED tubes are excellent without damage, do not try to use any damaged products

Read the label parameter carefully before installation and make sure the voltage and current are correct

Indoor use only

Do not vibrate tube

Do not disassemble the tube if have no authorization

Do not store tubes in humidity environment

Firstly please turn-off the power before install the LED tube

Take down the tradition fluorescent tube, cut-off or directly take off the starter and ballast from the tradition fluorescent tube fixture

Then, according below wiring diagram to connect the LED tube on the tradition fixture

Make sure everything are correctly and then turn on the power, the LED tube will light

Offices, supermarkets, schools, hospitals, lobby, halls, square, parking and more

Each LED tube packed in solo cardboard tube, then packed by paper carton

Quantity: 30 pieces/one carton

Size: 73 x 25 x 25cm

Gross weight: 6.5kg
