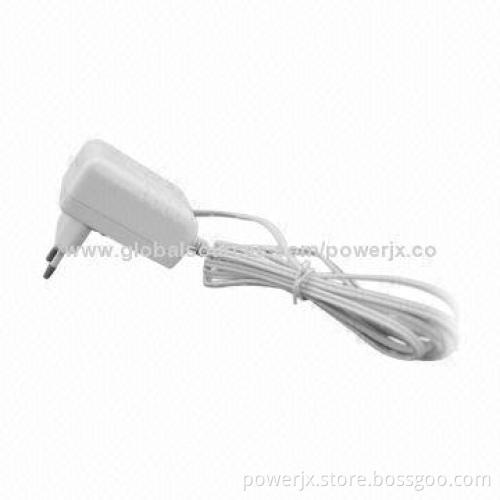

Best Quality 5V D-link Power Adapter with 90-264V AC, 50/60Hz Input

Best Quality 5V D-link Power Adapter with 90-264V AC, 50/60Hz Input

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Characteristics:

Input: 90-264V AC, 50/60Hz
Output power: 7.5W
Output voltage: 5V
Output current: 1.5A
Line regulation: ±5% (maximum)
Input current: 0.5A (maximum)
Inrush current: ≤20A
Leakage current: <1mA
Efficiency: ≥72%
Start time: ≤3 seconds (100V AC input, full load)
Guard time: ≥20ms (240V AC input, full load)
Insulation strength: 3,000V AC/5mA, 1 minute
Insulation resistance: ≥30MΩ, 500V DC
Safety compliance standards:
Certifications: UL, FCC, CE, CB and CCC

Reliability:

Average fault-free times under 25°C ambient temperature maximum working load
Average fault-free time 50,000 hours (as per GB4943-2001, IEC60950 standards)

Environmental requirements:

Working temperature: 0-40°C, 20-90% RH
Storage temperature: -20-80°C, 20-90% RH
Moisture under non-condensing condition, moisture 5-95%

Tests:

Burn-in test: power supply shall be burn-in for 4 hours under normal input and 80-100% rated load at 40 ±5°C
Height: 1m, the product should be fall off on the hardwood with the thickness of 20mm, and the hardwood shall be put on the base of the cement or on the ground without flexibility
Apply two times on all surface

Dielectric strength (hi-pot):

Primary to secondary: 3,000V AC/5mA maximum/3 seconds
Leakage current: 0.2mA maximum at 264V AC/50Hz
Insulation resistance: 50M minimum at primary to secondary add 500V DC test voltage

MTBF qualifications:

The MTBF shall be at least 50,000 hours at 25°C, full load and input condition (as per GB4943-2001, IEC60950 standards)
Short-circuit protection: the input power shall decrease when the output rail short, the power adapter shall not damage and shall be self-recovery when the fault condition is removed

Input: 90-264V AC, 50/60Hz

Output power: 7.5W

Output voltage: 5V

Output current: 1.5A

Line regulation: ±5% (maximum)

Input current: 0.5A (maximum)

Inrush current: ≤20A

Leakage current: <1mA

Efficiency: ≥72%

Start time: ≤3 seconds (100V AC input, full load)

Guard time: ≥20ms (240V AC input, full load)

Insulation strength: 3,000V AC/5mA, 1 minute

Insulation resistance: ≥30MΩ, 500V DC

Safety compliance standards:

Certifications: UL, FCC, CE, CB and CCC

Average fault-free times under 25°C ambient temperature maximum working load

Average fault-free time 50,000 hours (as per GB4943-2001, IEC60950 standards)

Working temperature: 0-40°C, 20-90% RH

Storage temperature: -20-80°C, 20-90% RH

Moisture under non-condensing condition, moisture 5-95%

Burn-in test: power supply shall be burn-in for 4 hours under normal input and 80-100% rated load at 40 ±5°C

Height: 1m, the product should be fall off on the hardwood with the thickness of 20mm, and the hardwood shall be put on the base of the cement or on the ground without flexibility

Apply two times on all surface

Primary to secondary: 3,000V AC/5mA maximum/3 seconds

Leakage current: 0.2mA maximum at 264V AC/50Hz

Insulation resistance: 50M minimum at primary to secondary add 500V DC test voltage

The MTBF shall be at least 50,000 hours at 25°C, full load and input condition (as per GB4943-2001, IEC60950 standards)

Short-circuit protection: the input power shall decrease when the output rail short, the power adapter shall not damage and shall be self-recovery when the fault condition is removed
