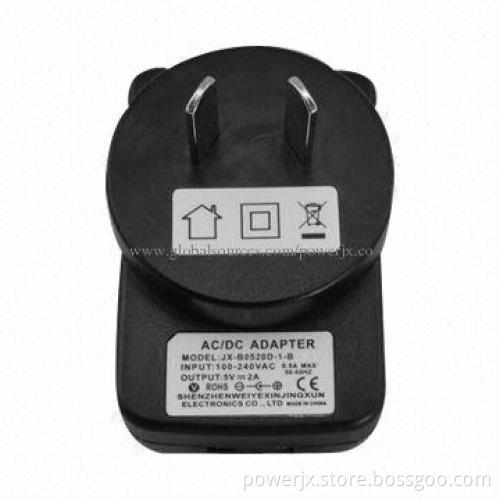

USB Power Adapter for iPad, iPhone, 90-264V AC, 50-60Hz Input Voltage, 10W Maximum Output Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Mode JX-B05020B-1-B

Input voltage: 90-264V AC, 50-60Hz

Rated voltage 100-240V

Input current: 0.5A (maximum)

Inrush current: ≤20A

Leakage current: <1mA

Maximum output power: 10W

Output voltage: 5V DC ±5%

Ripple wave (mVp-p): ≤100mV

Line modulate: ±5% (maximum)

Temperature coefficient: ±0.02%/°C

Start time: ≤3 seconds (100V AC input, full load)

Guard time: ≥20ms (240V AC input, full load)

Output standard: 5V/2A

Override protection: 115-200% VA, automatic recovery

Short-circuit protection 1channel: automatic recovery

Insulation strength 3,000V AC/5mA, 1 minute

Insulation resistance: ≥30MΩ, 500V DC

Environment working temperature: 0-40°C, 2-090% RH (non-condensing)

Store temperature: -20-80°C, 20-90% RH (non-condensing)

Standards safety standards: GB4943-2001 IEC60950

EMC GB9254-2008 GB17625-2003 EN55022

Efficiency: ≥72%

Size (L x W x H): 62 x 41.5 x 29mm
