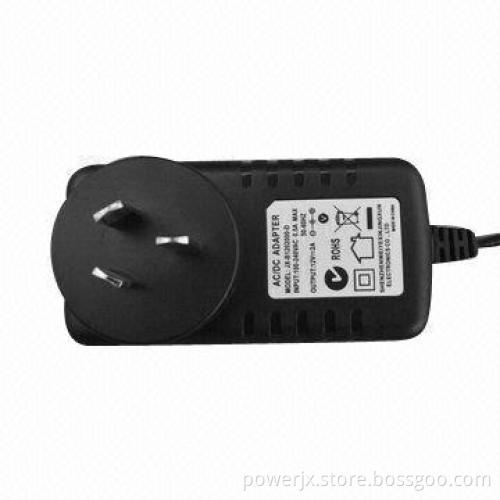

100 to 240V Australia Plug Switching Power Supply with CE, CB, FCC, UL and CCC Marks
  • 100 to 240V Australia Plug Switching Power Supply with CE, CB, FCC, UL and CCC Marks
  • 100 to 240V Australia Plug Switching Power Supply with CE, CB, FCC, UL and CCC Marks
100 to 240V Australia Plug Switching Power Supply with CE, CB, FCC, UL and CCC Marks
100 to 240V Australia Plug Switching Power Supply with CE, CB, FCC, UL and CCC Marks

100 to 240V Australia Plug Switching Power Supply with CE, CB, FCC, UL and CCC Marks

Get Latest Price
Payment Type:
T/T, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal
Product Description
Product Description
  • Specifications:
    • Output, 8V 3A and 12V 2A, 24W
    • Approval: CE, CB, FCC, CCC, UL, GS and SAA
    • Plug type: Europe, USA, UK, Australia and China
    • Warranty: 3 years
  • Features:
    • Model: JX-C2401000 - D
    • Input:
      • Input voltage: AC 90 to 264V, 50 to 60Hz
      • Rates voltage: 100 to 240V
      • Input current: 0.5A maximum
      • Inrush current: ≤20A
      • Leakage current:
      • Output:
        • Maximum power: 24W
        • Output voltage: DC 24V ± 5%
        • Ripple wave (mVp-p): ≤100mV
        • Linear modulate: ±5% maximum
        • Temperature coefficient: ±0.02%/°C
        • Start time: ≤3s (100V AC input, full load)
        • Guard time: ≥20ms (240V AC input, full load)
        • Output standard: 24V 1A
      • Protections:
        • Override protections: 115 to 200% VA, automatic recovery
        • Short-circuit protection 1 channel: automatic recovery
      • Insulation:
        • Insulation strength: 3,000V AC/5mA, 1 minute
        • Insulation resistance: ≥30MΩ, DC 500V
      • Environment:
        • Working temperatures: 0 to 40°C, 20 to 90% RH (non-condensing)
        • Storage temperatures: -20 to 80°C, 20 to 90% RH (non-condensing)
      • Standards:
        • Safety standards: GB4943-2001 IEC60950
        • EMC: En55022
      • Efficiency: ≥80%
      • Dimensions (L x W x H): 93.5 x 46.5 x 33mm
    • Packaging: polybag, color box, blister packaging or customized
    • Delivery lead-time: within 5 to 12 working days after payment confirmation
  • Output, 8V 3A and 12V 2A, 24W
  • Approval: CE, CB, FCC, CCC, UL, GS and SAA
  • Plug type: Europe, USA, UK, Australia and China
  • Warranty: 3 years
  • Model: JX-C2401000 - D
  • Input:
    • Input voltage: AC 90 to 264V, 50 to 60Hz
    • Rates voltage: 100 to 240V
    • Input current: 0.5A maximum
    • Inrush current: ≤20A
    • Leakage current:
    • Output:
      • Maximum power: 24W
      • Output voltage: DC 24V ± 5%
      • Ripple wave (mVp-p): ≤100mV
      • Linear modulate: ±5% maximum
      • Temperature coefficient: ±0.02%/°C
      • Start time: ≤3s (100V AC input, full load)
      • Guard time: ≥20ms (240V AC input, full load)
      • Output standard: 24V 1A
    • Protections:
      • Override protections: 115 to 200% VA, automatic recovery
      • Short-circuit protection 1 channel: automatic recovery
    • Insulation:
      • Insulation strength: 3,000V AC/5mA, 1 minute
      • Insulation resistance: ≥30MΩ, DC 500V
    • Environment:
      • Working temperatures: 0 to 40°C, 20 to 90% RH (non-condensing)
      • Storage temperatures: -20 to 80°C, 20 to 90% RH (non-condensing)
    • Standards:
      • Safety standards: GB4943-2001 IEC60950
      • EMC: En55022
    • Efficiency: ≥80%
    • Dimensions (L x W x H): 93.5 x 46.5 x 33mm
  • Packaging: polybag, color box, blister packaging or customized
  • Delivery lead-time: within 5 to 12 working days after payment confirmation
  • Input voltage: AC 90 to 264V, 50 to 60Hz
  • Rates voltage: 100 to 240V
  • Input current: 0.5A maximum
  • Inrush current: ≤20A
  • Leakage current:
  • Output:
    • Maximum power: 24W
    • Output voltage: DC 24V ± 5%
    • Ripple wave (mVp-p): ≤100mV
    • Linear modulate: ±5% maximum
    • Temperature coefficient: ±0.02%/°C
    • Start time: ≤3s (100V AC input, full load)
    • Guard time: ≥20ms (240V AC input, full load)
    • Output standard: 24V 1A
  • Protections:
    • Override protections: 115 to 200% VA, automatic recovery
    • Short-circuit protection 1 channel: automatic recovery
  • Insulation:
    • Insulation strength: 3,000V AC/5mA, 1 minute
    • Insulation resistance: ≥30MΩ, DC 500V
  • Environment:
    • Working temperatures: 0 to 40°C, 20 to 90% RH (non-condensing)
    • Storage temperatures: -20 to 80°C, 20 to 90% RH (non-condensing)
  • Standards:
    • Safety standards: GB4943-2001 IEC60950
    • EMC: En55022
  • Efficiency: ≥80%
  • Dimensions (L x W x H): 93.5 x 46.5 x 33mm
  • Maximum power: 24W
  • Output voltage: DC 24V ± 5%
  • Ripple wave (mVp-p): ≤100mV
  • Linear modulate: ±5% maximum
  • Temperature coefficient: ±0.02%/°C
  • Start time: ≤3s (100V AC input, full load)
  • Guard time: ≥20ms (240V AC input, full load)
  • Output standard: 24V 1A
  • Override protections: 115 to 200% VA, automatic recovery
  • Short-circuit protection 1 channel: automatic recovery
  • Insulation strength: 3,000V AC/5mA, 1 minute
  • Insulation resistance: ≥30MΩ, DC 500V
  • Working temperatures: 0 to 40°C, 20 to 90% RH (non-condensing)
  • Storage temperatures: -20 to 80°C, 20 to 90% RH (non-condensing)
  • Safety standards: GB4943-2001 IEC60950
  • EMC: En55022
