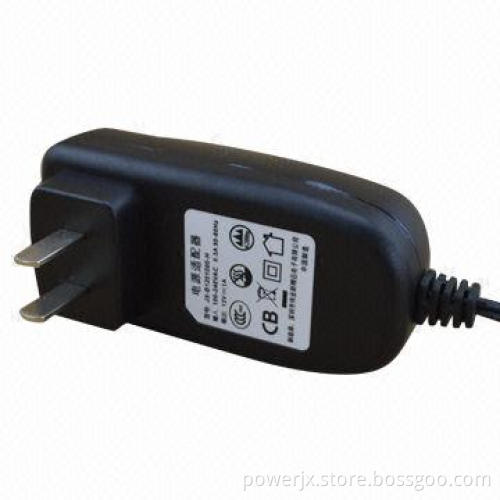

12W 5V Series Wall-mounted Power Adapter/Charger

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Product highlights: light and compact design

Optional LED power indicator and built-in EMI filter

Input voltage: 100 to 264V AC

Frequency: 50 to 60Hz

Input current: 0.2A

Output voltage range: 2.8 to 24V

Output current range: 0.57 to 2A

European/US/UK/Australia and New Zealand standard are available

Protection: short-circuit, over-voltage, over-current, thermal shutdown capability

Specifications:

Input voltage range: 100 to 240V AC

Input frequency range: 50 to 60Hz

Input current: <0.4A

Efficiency: meet energy star level V

No-load power consumption: <0.3W

Ripple/noise: <150mV

Operation ambient: 0 to 40°C

Humidity: <95% RH

Storage ambient: -20 to 80°C

Humidity: <95% RH

Leakage current: <0.25mA

Insulation resistance: >20MΩ

Dielectric withstanding strength (primary to secondary): 3000V AC, 10mA, 60s

Service: 3 years warranty
