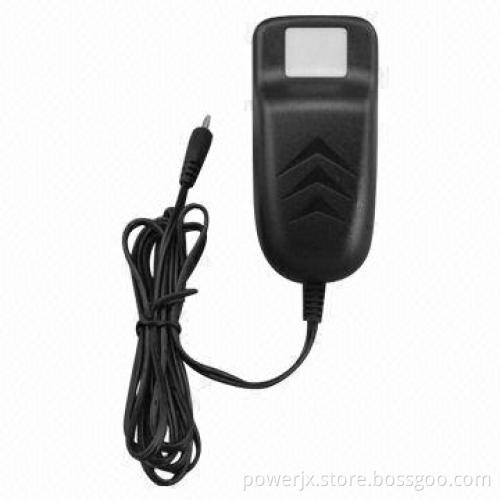

12W High-quality Wall Power Adapter with 3yrs Warranty
  • 12W High-quality Wall Power Adapter with 3yrs Warranty
  • 12W High-quality Wall Power Adapter with 3yrs Warranty
12W High-quality Wall Power Adapter with 3yrs Warranty
12W High-quality Wall Power Adapter with 3yrs Warranty

12W High-quality Wall Power Adapter with 3yrs Warranty

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Compact size and easy-to-carry
    • Punctual delivery and competitive price
    • Single output to 12W
    • Meet safety agency requirements, complies EMI/EMC
    • Modified/customized designs are welcome
    • 3 years warranty
    • CB/CCC/CE certification passed
    • Wall mount type (side)
  • Parameters:
    • Input:
      • Voltage: 100 to 240V AC
      • Frequency: 50 to 60Hz
      • Current: 0.48A max
    • Output:
      • Load regulation: 5% typical
      • Ripple: 1 to 2%p-p max for output voltage and full load
      • Transit response: 0.5ms for 50% load change typical
      • Holdup time: 10ms full load
      • Protections: short-circuit/over-voltage/over-current
      • DC cord: 22AWG
    • Electrical:
      • Topology: switching fly back
      • Hi-pot withstand: 3000V AC primary/secondary
      • Leakage current: 0.25mA at 2-pin
      • Efficiency: meet CEC and energy star
      • EMI conduction and radiation: compliance to EN55022 class B
      • Harmonic current: compliance to EN61000-3-2,3
      • EMS immunity: compliance to EN61000-4-2, 3.4, 5, 6, 8, 11
      • MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F
  • Compact size and easy-to-carry
  • Punctual delivery and competitive price
  • Single output to 12W
  • Meet safety agency requirements, complies EMI/EMC
  • Modified/customized designs are welcome
  • 3 years warranty
  • CB/CCC/CE certification passed
  • Wall mount type (side)
  • Input:
    • Voltage: 100 to 240V AC
    • Frequency: 50 to 60Hz
    • Current: 0.48A max
  • Output:
    • Load regulation: 5% typical
    • Ripple: 1 to 2%p-p max for output voltage and full load
    • Transit response: 0.5ms for 50% load change typical
    • Holdup time: 10ms full load
    • Protections: short-circuit/over-voltage/over-current
    • DC cord: 22AWG
  • Electrical:
    • Topology: switching fly back
    • Hi-pot withstand: 3000V AC primary/secondary
    • Leakage current: 0.25mA at 2-pin
    • Efficiency: meet CEC and energy star
    • EMI conduction and radiation: compliance to EN55022 class B
    • Harmonic current: compliance to EN61000-3-2,3
    • EMS immunity: compliance to EN61000-4-2, 3.4, 5, 6, 8, 11
    • MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F
  • Voltage: 100 to 240V AC
  • Frequency: 50 to 60Hz
  • Current: 0.48A max
  • Load regulation: 5% typical
  • Ripple: 1 to 2%p-p max for output voltage and full load
  • Transit response: 0.5ms for 50% load change typical
  • Holdup time: 10ms full load
  • Protections: short-circuit/over-voltage/over-current
  • DC cord: 22AWG
  • Topology: switching fly back
  • Hi-pot withstand: 3000V AC primary/secondary
  • Leakage current: 0.25mA at 2-pin
  • Efficiency: meet CEC and energy star
  • EMI conduction and radiation: compliance to EN55022 class B
  • Harmonic current: compliance to EN61000-3-2,3
  • EMS immunity: compliance to EN61000-4-2, 3.4, 5, 6, 8, 11
  • MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F
