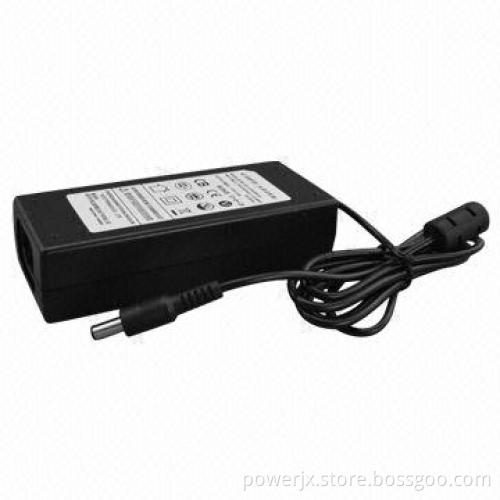

48W/16.5V/2.9A Desktop AC Adapter with Short-circuit Protection

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Input voltage: 90 to 264V AC, 50 to 60Hz

Rate voltage: 100 to 240V

Input current: 0.6A, maximum

Inrush current: ≤20A

Leakage current: Maximum power: 48W

Output voltage: 8V DC ± 5%

Ripple wave (mV p-p): ≤100mV

Linear modulate: ±5% maximum

Temperature coefficient: ±0.02%/°C

Start time: ≤3s (100V AC input, full load)

Guard time: ≥20ms (240V AC input, full load)

Output standard: 16.5V/2.9A

Override protection: 115 to 200%VA, automatic recovery

Short-circuit protection: 1 channel, automatic recovery

Insulation strength: 3000V AC/5mA, 1 minute

Insulation resistance: ≥30MΩ, 500V DC

Working temperature: 0 to 40°C, 20 to 90% RH, non-condensing

Store temperature: -20 to 80°C, 20 to 90% RH, non-condensing

Safety standards: GB4943-2001 IEC60950

EMC: En55022

Efficiency: ≥80%

Size (L x W x H) 125 x 51 x 32mm

Certifications: CE/CB/CCC

Warranty: 3 years

Packing way: bubble bag inside with color box or customized

OEM and ODM orders are welcome
