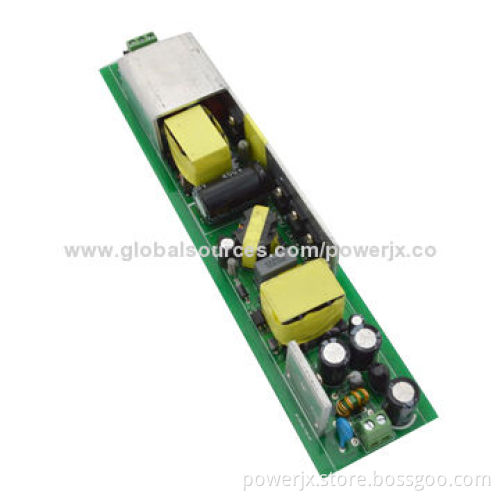

12V/24V/42V Constant Current LED Streetlight Power Supply

12V/24V/42V Constant Current LED Streetlight Power Supply

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Energy saving, environmental protection, green, low carbon new light source
High performance, high reliability, full aluminum shell, Rubyco capacitance
Built-in output over voltage, OCP, SCP

Input:

Input voltage: 90-310V AC 50/60Hz 0.6A-2A
Star infush current: when cooling 50A/310VAC

Output:

Output voltage precision: +5%-3%
Line regulation: ±0.5% max
Temperature coefficient: ±0.02%/°C
Start time: ≤1s (240V input 1=100%)
Guard time: ≥20ms (240V input 1=100%)

Protection:

Overvoltage protection
100% recovery
Override protection
1.6A, 2.2A and 2.7A
Short-circuit protection
Continuous short circuit is not damaged, can be automatically restored after normal

Insulation:

Insulation strength: 3000V/10Ma, 1MIN
Insulation resistance: 50MΩ, DC 500V

Environment:

Working temperature: 0-40°C, 10%-90% RH (no condensation)
Store temperature: -20°C-85°C, 10%-90% RH (no condensation)

Sea level elevation: <3000m

Standards: EMC

Comply with EN550228 GB9254 standard

Structure:

Cooling way: nature cool

Application:

LED furniture, lamps and lanterns, the LED mining tunnel, plant lighting, outdoor lighting, road lighting

Energy saving, environmental protection, green, low carbon new light source

High performance, high reliability, full aluminum shell, Rubyco capacitance

Built-in output over voltage, OCP, SCP

Input voltage: 90-310V AC 50/60Hz 0.6A-2A

Star infush current: when cooling 50A/310VAC

Output voltage precision: +5%-3%

Line regulation: ±0.5% max

Temperature coefficient: ±0.02%/°C

Start time: ≤1s (240V input 1=100%)

Guard time: ≥20ms (240V input 1=100%)

Overvoltage protection

100% recovery

Override protection

1.6A, 2.2A and 2.7A

Short-circuit protection

Continuous short circuit is not damaged, can be automatically restored after normal

Insulation strength: 3000V/10Ma, 1MIN

Insulation resistance: 50MΩ, DC 500V

Working temperature: 0-40°C, 10%-90% RH (no condensation)

Store temperature: -20°C-85°C, 10%-90% RH (no condensation)

Cooling way: nature cool

LED furniture, lamps and lanterns, the LED mining tunnel, plant lighting, outdoor lighting, road lighting
