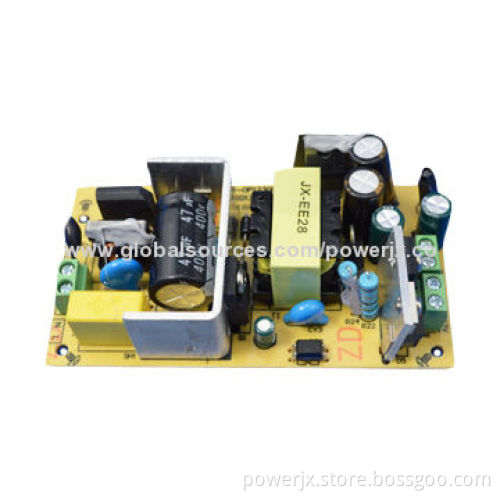

6-36V DC Input DC Output 36W DC Power Supply, 12V/3A, Over-voltage Protection

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

AC inrush current cold-start current: 30A/115V, 60A/230V
Overload protection: 105-150%
Type: cut output
Reset: auto-recovery
Over-voltage protection
High-temperature protection
Temperature coefficient: ±0.03%/°C (0-50°C)
Start, rise, hold time: 200ms, 100ms, 20ms
Vibration: 10-500Hz, 2G 10 minutes/1 cycle, a total of 60 minutes
Each axes withstand voltage between input and output: 1.5kV AC
Input and shell: 1.5kV AC
Output and shell: 0.5kV AC
Isolation resistance:
- Input and output internal: input and enclosure
- Output and enclosure: 500VDC/100M Ohms
Working temperature and humidity: -10-+60°C (refer to output derating curve), 20-90% RH
Storage temperature and humidity: 20-+85°C, 10-95% RH
Overall dimensions: 101*59*30mm
Weight: 0.66kg
Safety standards: meet UL 1012 requirement (not apply for the mark)
EMC standards: meet FCC part 15J conduction class B

Applications:

The using environment of product and deposited condition:

Notes:

Please operate strictly according to the product operating instructions
Do not directly use the products in harsh environments (such as: PH larger areas or in water use)

AC inrush current cold-start current: 30A/115V, 60A/230V

Overload protection: 105-150%

Type: cut output

Reset: auto-recovery

Over-voltage protection

High-temperature protection

Temperature coefficient: ±0.03%/°C (0-50°C)

Start, rise, hold time: 200ms, 100ms, 20ms

Vibration: 10-500Hz, 2G 10 minutes/1 cycle, a total of 60 minutes

Each axes withstand voltage between input and output: 1.5kV AC

Input and shell: 1.5kV AC

Output and shell: 0.5kV AC
