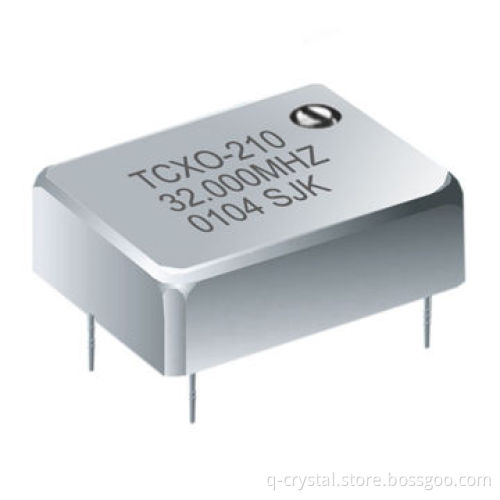

Temperature Compensated Crystal Oscillator (TCXO) with High-frequency Stability

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

TCXO/temperature compensated crystal oscillators (TCXOoscillators)

High frequency stability and high frequency range

Compliant with the RoHS Directive

Pb-free

Specifications:

Applications: mobile communication, avionics, test equipment,electronic instruments, wireless communications and moreapplications

Frequency range: 1.000MHz to 1500.000MHz

F-T stability: ±0.5 ppm to ±10 ppm

Operating temperature: -10 to 60, 0 to 70, -20 to 70, -40 to 70and -50 to 85°C

Storage temperature range: -55 to +125°C

Voltage: +3.3V/+5V/+12V

Current: 2 to 20mA

Waveform: sine/pulse

Frequency trim: 1ppm to ±5ppm (mechanical orelectrical)

Aging/year: ±1ppm to ±3ppm

Dimensions: 18.5 x 12 x 8mm, 20.8 x 13.2 x 8mm, 25 x 15 x 10mmor customized
