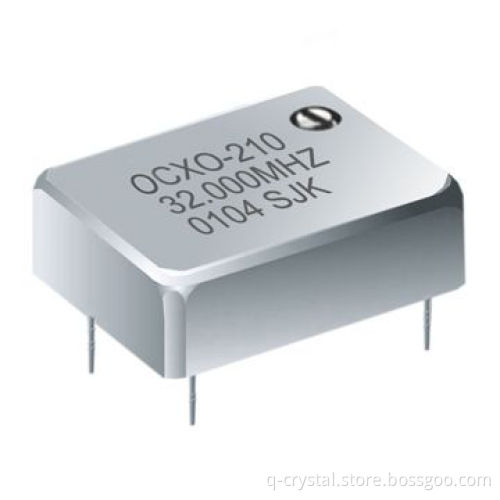

Oven Controlled Crystal Oscillator, 10 to 100MHz Frequency Range, 5W Warm-up Power

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Frequency range: 10 to 100MHz
Supply voltage: 3.3, 5, 12V
Mode: SC-cut/AC-cut
Temperature stability:
- AT-cut: 100, 50, 20ppb
- SC-cut: 20, 10, 5ppb
Temperature range: -40 to +85, -20 to +70, 0 to +70°C
Warm-up power: 5W
Output wave form: sine
Aging/year: 0.1 to 0.02ppm
Size: 25.3 x 25.3 x 6.2, 36 x 17.8 x 13.6mm

Applications:

Mobile communication, Avionics, test equipment, electronicinstruments

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Frequency range: 10 to 100MHz

Supply voltage: 3.3, 5, 12V

Mode: SC-cut/AC-cut

Temperature stability:

AT-cut: 100, 50, 20ppb
SC-cut: 20, 10, 5ppb

Temperature range: -40 to +85, -20 to +70, 0 to +70°C

Warm-up power: 5W

Output wave form: sine

Aging/year: 0.1 to 0.02ppm

Size: 25.3 x 25.3 x 6.2, 36 x 17.8 x 13.6mm

AT-cut: 100, 50, 20ppb

SC-cut: 20, 10, 5ppb

Mobile communication, Avionics, test equipment, electronicinstruments
