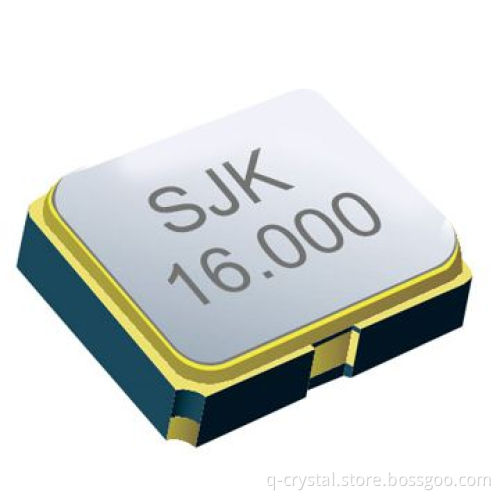

16MHz Clock Oscillator, 2.5 x 2.0mm, 3.3V Supply Voltage
  • 16MHz Clock Oscillator, 2.5 x 2.0mm, 3.3V Supply Voltage
16MHz Clock Oscillator, 2.5 x 2.0mm, 3.3V Supply Voltage

16MHz Clock Oscillator, 2.5 x 2.0mm, 3.3V Supply Voltage

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Broad frequency range: 4 to 54MHz
    • Compact and thin ceramic packing with a metalized for surfacemount and automatically loaded
    • Reflow soldering is possible
    • Lower noise and current with reduced power consumption
    • Built-in CMOS IC with tractate function
    • 3.3, 2.5 and 1.8V supply model available
  • Electrical specifications:
    • Frequency range: 4.000 to 54MHz
    • Output type: CMOS
    • Output load: 15pF, or specify
    • Oscillator mode: fundamental
    • Supply voltage: 3.3V (1.8, 2.5V available)
    • Frequency stability: ±25, 50ppm
    • Voltage vol (maximum)/vol (minimum): 0.1VDD/0.9VDD
    • Operating temperature range: -20 to +70, -40 to +85°C
    • Storage temperature range: -55 to +125°C
    • Rise (Tr)/fall (Tf) time: 8ns (maximum)
    • Supply current: 15mA (maximum)
    • Symmetry: 45 to 55% (maximum)
    • Start-up time: 5 minutes (maximum)
    • Aging (at 25°C): ±3ppm/year (maximum)
    • Size: 2.5 x 2.0 x 0.8mm
  • Applications:
    • Best choice for Bluetooth, mobile phone, smartphone, GPS, MID,Palmtop computer, portable applications, PCMCIA cards, NB, PCs andmore
  • Broad frequency range: 4 to 54MHz
  • Compact and thin ceramic packing with a metalized for surfacemount and automatically loaded
  • Reflow soldering is possible
  • Lower noise and current with reduced power consumption
  • Built-in CMOS IC with tractate function
  • 3.3, 2.5 and 1.8V supply model available
  • Frequency range: 4.000 to 54MHz
  • Output type: CMOS
  • Output load: 15pF, or specify
  • Oscillator mode: fundamental
  • Supply voltage: 3.3V (1.8, 2.5V available)
  • Frequency stability: ±25, 50ppm
  • Voltage vol (maximum)/vol (minimum): 0.1VDD/0.9VDD
  • Operating temperature range: -20 to +70, -40 to +85°C
  • Storage temperature range: -55 to +125°C
  • Rise (Tr)/fall (Tf) time: 8ns (maximum)
  • Supply current: 15mA (maximum)
  • Symmetry: 45 to 55% (maximum)
  • Start-up time: 5 minutes (maximum)
  • Aging (at 25°C): ±3ppm/year (maximum)
  • Size: 2.5 x 2.0 x 0.8mm
  • Best choice for Bluetooth, mobile phone, smartphone, GPS, MID,Palmtop computer, portable applications, PCMCIA cards, NB, PCs andmore
