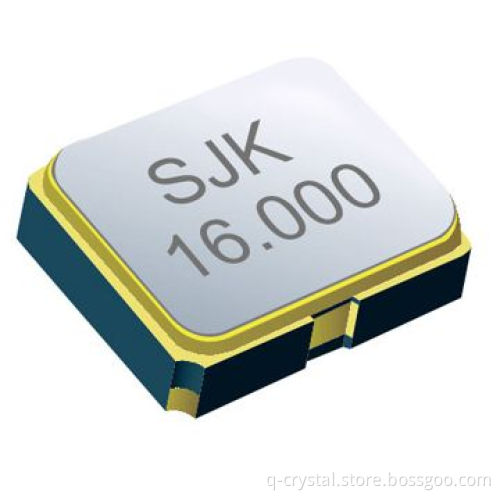

Tcxo/SMD Tcxo/SMD Oscillator/Tcxo Oscillator/SMD 3225 Tcxo, 16.000 to 26.000MHz Output Frequency
  • Tcxo/SMD Tcxo/SMD Oscillator/Tcxo Oscillator/SMD 3225 Tcxo, 16.000 to 26.000MHz Output Frequency
Tcxo/SMD Tcxo/SMD Oscillator/Tcxo Oscillator/SMD 3225 Tcxo, 16.000 to 26.000MHz Output Frequency

Tcxo/SMD Tcxo/SMD Oscillator/Tcxo Oscillator/SMD 3225 Tcxo, 16.000 to 26.000MHz Output Frequency

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Output frequency range: 16.000 to 26.000MHz
    • Supply voltage: +2.3 to +3.7V
    • Output level: 0.8Vp-p (minimum) (clipped sine wave)(10KOhms/10pF ± 10% each)
    • Current: 20mA (maximum) (10KOhms/10pF ± 10% each)
    • Operating temperature range: -30 to +85 degrees Celsius
    • Storage temperature range: -40 to +85 degrees Celsius
    • Frequency stability:
      • Temperature: ±2.5ppm (maximum)
      • Supply voltage: ±0.1ppm (maximum) (VCC ± 5%)
      • Load: ±0.2ppm (maximum) (10KOhms/10pF ± 10%each)
      • Aging: ±1.0ppm (maximum) (1-year)
      • Reflow soldering: ±1.0ppm (maximum) (2 times)
      • Initial frequency tolerance: ±1.0ppm (maximum) (25degrees Celsius)
    • Phase noise:
      • -58dBC/Hz type/1Hz offset
      • -88dBC/Hz type /10Hz offset
      • -113dBC/Hz type/ 100Hz offset
      • -135dBC/Hz type/KHz offset
      • -145dBC/Hz type /KHz offset
    • Frequency slop: 0.1ppm/ degrees Celsius (maximum) ( -20 to 70degrees Celsius, 1-frequency reading every 2 degrees Celsius)
    • Size: 3.2 x 2.5mm
  • Output frequency range: 16.000 to 26.000MHz
  • Supply voltage: +2.3 to +3.7V
  • Output level: 0.8Vp-p (minimum) (clipped sine wave)(10KOhms/10pF ± 10% each)
  • Current: 20mA (maximum) (10KOhms/10pF ± 10% each)
  • Operating temperature range: -30 to +85 degrees Celsius
  • Storage temperature range: -40 to +85 degrees Celsius
  • Frequency stability:
    • Temperature: ±2.5ppm (maximum)
    • Supply voltage: ±0.1ppm (maximum) (VCC ± 5%)
    • Load: ±0.2ppm (maximum) (10KOhms/10pF ± 10%each)
    • Aging: ±1.0ppm (maximum) (1-year)
    • Reflow soldering: ±1.0ppm (maximum) (2 times)
    • Initial frequency tolerance: ±1.0ppm (maximum) (25degrees Celsius)
  • Phase noise:
    • -58dBC/Hz type/1Hz offset
    • -88dBC/Hz type /10Hz offset
    • -113dBC/Hz type/ 100Hz offset
    • -135dBC/Hz type/KHz offset
    • -145dBC/Hz type /KHz offset
  • Frequency slop: 0.1ppm/ degrees Celsius (maximum) ( -20 to 70degrees Celsius, 1-frequency reading every 2 degrees Celsius)
  • Size: 3.2 x 2.5mm
  • Temperature: ±2.5ppm (maximum)
  • Supply voltage: ±0.1ppm (maximum) (VCC ± 5%)
  • Load: ±0.2ppm (maximum) (10KOhms/10pF ± 10%each)
  • Aging: ±1.0ppm (maximum) (1-year)
  • Reflow soldering: ±1.0ppm (maximum) (2 times)
  • Initial frequency tolerance: ±1.0ppm (maximum) (25degrees Celsius)
  • -58dBC/Hz type/1Hz offset
  • -88dBC/Hz type /10Hz offset
  • -113dBC/Hz type/ 100Hz offset
  • -135dBC/Hz type/KHz offset
  • -145dBC/Hz type /KHz offset
