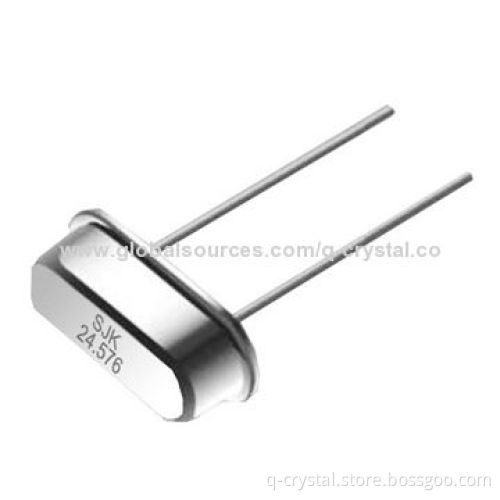

Quartz Crystal Series Resonator with Height 3.5mm and 3.000 to 100.000MHz Frequency Range
  • Quartz Crystal Series Resonator with Height 3.5mm and 3.000 to 100.000MHz Frequency Range
Quartz Crystal Series Resonator with Height 3.5mm and 3.000 to 100.000MHz Frequency Range

Quartz Crystal Series Resonator with Height 3.5mm and 3.000 to 100.000MHz Frequency Range

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Height 3.5mm, the volume is compact at about one-fourth of the former product (hc-49u)
    • A resistance weld completely sealed type
    • Frequency stability is good and reliability is high
    • Copes with high density mounting and is the optimum for mass production
    • High precision characteristic covering up to high frequency range
    • With RoHS, PB-free and REACH marks
  • Electrical specifications:
    • Frequency range: 3.000 to 100.000MHz
    • Equivalent series resistance (esr): 30 to 150©
    • Frequency tolerance (at 25°C): ±30ppm or customized
    • Frequency stability: ±30ppm or customized
    • Operating temperature range: -10 to 60, -20 to 70 or -40 to 85°C
    • Storage temperature range: -40 to +85°C
    • Shunt capacitance: 7pf
    • Drive level: 100¼w
    • Load capacitance series: 16, 20, 30, 32pf or customized
    • Insulation resistance: 500M© at 100V DC
  • Height 3.5mm, the volume is compact at about one-fourth of the former product (hc-49u)
  • A resistance weld completely sealed type
  • Frequency stability is good and reliability is high
  • Copes with high density mounting and is the optimum for mass production
  • High precision characteristic covering up to high frequency range
  • With RoHS, PB-free and REACH marks
  • Frequency range: 3.000 to 100.000MHz
  • Equivalent series resistance (esr): 30 to 150©
  • Frequency tolerance (at 25°C): ±30ppm or customized
  • Frequency stability: ±30ppm or customized
  • Operating temperature range: -10 to 60, -20 to 70 or -40 to 85°C
  • Storage temperature range: -40 to +85°C
  • Shunt capacitance: 7pf
  • Drive level: 100¼w
  • Load capacitance series: 16, 20, 30, 32pf or customized
  • Insulation resistance: 500M© at 100V DC
