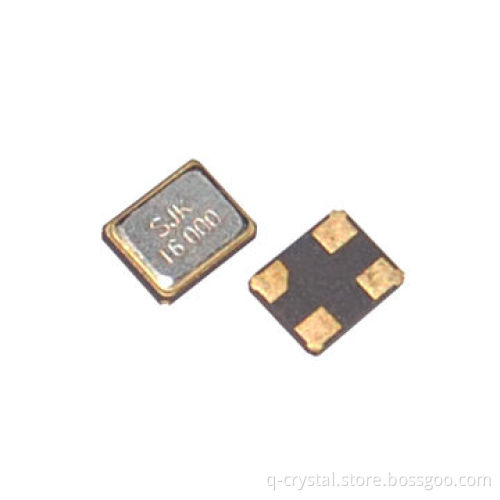

SMD Crystal Resonators, 2520 Size, 16MHz Frequency, 9pF Load Capacitance, 10ppm Frequency Stability
  • SMD Crystal Resonators, 2520 Size, 16MHz Frequency, 9pF Load Capacitance, 10ppm Frequency Stability
SMD Crystal Resonators, 2520 Size, 16MHz Frequency, 9pF Load Capacitance, 10ppm Frequency Stability

SMD Crystal Resonators, 2520 Size, 16MHz Frequency, 9pF Load Capacitance, 10ppm Frequency Stability

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • High-precision and high-frequency stability
    • Excellent heat resistance and environmental characteristic
    • 2520 size miniature and lightweight SMD crystal resonator witha low-profile of 0.5mm
    • Applications in PDA, DSC, mobile phone, DVC, PC, automotive,wireless communication, game equipment and more
    • Comes with RoHS compliant/Pb-free
    • Automatic mounting and re-flow soldering
  • Electrical specifications:
    • Frequency: 16MHz
    • Frequency tolerance: ±10ppm
    • Frequency stability over-operating temperature range:±10ppm
    • Operating temperature range: -20 to +70°C
    • Drive level: 100¼W
    • Load capacitance: 9pF
    • Aging: ±3ppm/year (maximum)
    • Equivalent series resistance: 100©
    • Storage temperature range: -55 to +125°C
    • Size: 2.5 x 2.0 x 0.5mm
  • High-precision and high-frequency stability
  • Excellent heat resistance and environmental characteristic
  • 2520 size miniature and lightweight SMD crystal resonator witha low-profile of 0.5mm
  • Applications in PDA, DSC, mobile phone, DVC, PC, automotive,wireless communication, game equipment and more
  • Comes with RoHS compliant/Pb-free
  • Automatic mounting and re-flow soldering
  • Frequency: 16MHz
  • Frequency tolerance: ±10ppm
  • Frequency stability over-operating temperature range:±10ppm
  • Operating temperature range: -20 to +70°C
  • Drive level: 100¼W
  • Load capacitance: 9pF
  • Aging: ±3ppm/year (maximum)
  • Equivalent series resistance: 100©
  • Storage temperature range: -55 to +125°C
  • Size: 2.5 x 2.0 x 0.5mm
