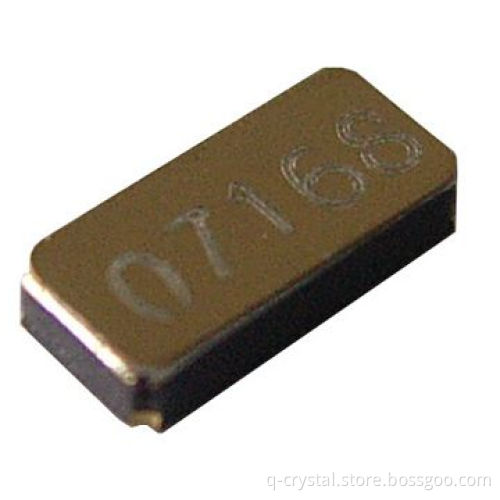

Crystal Resonator with 32.768kHz and 32.768kHz Frequency, Measures 3.2 x 1.5mm
  • Crystal Resonator with 32.768kHz and 32.768kHz Frequency, Measures 3.2 x 1.5mm
Crystal Resonator with 32.768kHz and 32.768kHz Frequency, Measures 3.2 x 1.5mm

Crystal Resonator with 32.768kHz and 32.768kHz Frequency, Measures 3.2 x 1.5mm

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Most appropriate for high-density circuit board by the smallsurface mount type
    • Embedded with heat resistant cylinder type crystal bring highlystable characteristics
  • Specifications:
    • Nominal frequency: 32.768kHz
    • Frequency tolerance: ±20ppm at 25°C
    • Load capacitance: 12.5pF
    • Turnover temperature: 25 ±5°C
    • Operable temperature ranges: -40 to 85°C
    • Storage temperature ranges: -55 to 125°C
    • Temperature coefficient: -0.034 ±0.006ppm/°C(square)
    • Resistance: 50 to 70K© (maximum)
    • Level of drive: 1¼W (maximum)
    • Aging at 25°C 1st year: ±3ppm/year (maximum)
    • Shunt capacity: 1.20pF
    • Material: seam sealed ceramic
    • Dimensions: 3.2 x 1.5mm
    • Applications: suitable for small mobile telecommunicationdevices
  • Packaging:
    • Bulk pack for DIP products
    • Tape and real for SMD product
  • Most appropriate for high-density circuit board by the smallsurface mount type
  • Embedded with heat resistant cylinder type crystal bring highlystable characteristics
  • Nominal frequency: 32.768kHz
  • Frequency tolerance: ±20ppm at 25°C
  • Load capacitance: 12.5pF
  • Turnover temperature: 25 ±5°C
  • Operable temperature ranges: -40 to 85°C
  • Storage temperature ranges: -55 to 125°C
  • Temperature coefficient: -0.034 ±0.006ppm/°C(square)
  • Resistance: 50 to 70K© (maximum)
  • Level of drive: 1¼W (maximum)
  • Aging at 25°C 1st year: ±3ppm/year (maximum)
  • Shunt capacity: 1.20pF
  • Material: seam sealed ceramic
  • Dimensions: 3.2 x 1.5mm
  • Applications: suitable for small mobile telecommunicationdevices
  • Bulk pack for DIP products
  • Tape and real for SMD product
