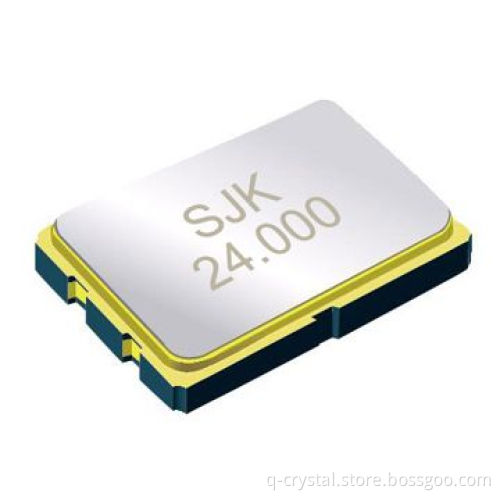

5032 SMD Quartz Crystal Resonator with 24.000MHz Frequency and Sized 5.0 x 3.2mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Electrical specifications:

Applications:

Ideally suited designed for disc drives, NB, PCs and hand-heldelectronic products

Ultra-thin, thickness 1.0mm

Lead-less type

High-precision characteristic covering up to high-frequencyrange

Designed for automatic mounting and re-flow soldering

Embossed taping specification

Output frequency: 24.000MHz

Frequency tolerance (at 25°C): ±30 to ±50ppm,specify

Frequency stability over-operating temperature: ±30 to±50ppm, specify

Storage temperature range: -55 to +125°C

Operating temperature range: -10 to +60, -20 to +70 and -40 to+85°C

Shunt capacity (C0): 5.0pF (maximum)

Drivel level: 10 to 100¼W

Loading capacitance (CL): series, 16, 20, 30 and 32pF orspecify

Aging (at 25°C): ±3ppm/year

Shock resistance: drop test of 3 times on 2mm stainless platefrom 75cm height

Ideally suited designed for disc drives, NB, PCs and hand-heldelectronic products
