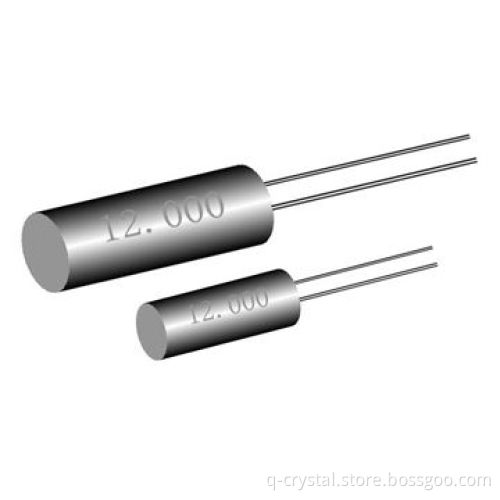

Quartz Crystal Series, Cylinder Crystal for MHz, 3.579 to 50MHz Output Frequency Range

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Wife frequency range
High shock tolerance
Small size
Good frequency stability

Specifications:

Output frequency range: 3.579 to 50MHz
Frequency tolerance: ±10, ±20, ±30ppm orspecify (at25°C)
Storage temperature: -40 to +85°C
Operable temperature range: -10 to +60, -20 to +70, -40 to+85°C
Shunt capacity: 5.0pF
Drive level: 10 to 100¼W (maximum)
Load capacitance: 12, 16pF or specify
Insulation resistance: 500m© at 100V DC
Aging: ±3ppm/year

Applications:

Microprocessor systems
Consumer Electronics
Instrumentation
Automotive electronics

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Wife frequency range

High shock tolerance

Small size

Good frequency stability

Output frequency range: 3.579 to 50MHz

Frequency tolerance: ±10, ±20, ±30ppm orspecify (at25°C)

Storage temperature: -40 to +85°C

Operable temperature range: -10 to +60, -20 to +70, -40 to+85°C

Shunt capacity: 5.0pF

Drive level: 10 to 100¼W (maximum)

Load capacitance: 12, 16pF or specify

Aging: ±3ppm/year

Microprocessor systems

Consumer Electronics

Instrumentation

Automotive electronics
