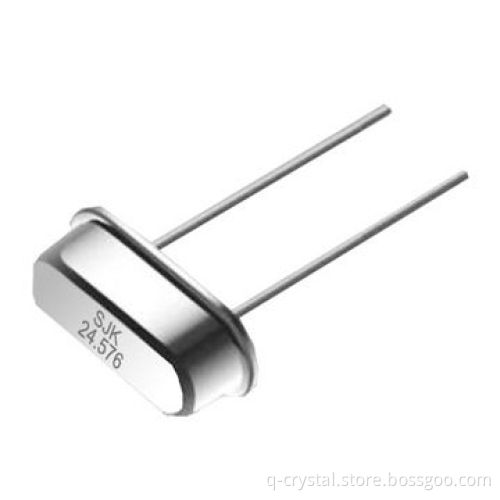

Dip Hc-49s Quartz Crystal Resonator
  • Dip Hc-49s Quartz Crystal Resonator
Dip Hc-49s Quartz Crystal Resonator

Dip Hc-49s Quartz Crystal Resonator

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Height 3.5mm, the volume is compact at about one-fourth of theformer product (hc-49u)
    • A resistance weld completely sealed type
    • Frequency stability is good and reliability is high
    • Copes with high density mounting and is the optimum for massproduction
    • High precision characteristic covering up to high frequencyrange
    • With RoHS, PB-free and REACH marks
  • Electrical specifications:
    • Frequency range: 3.000 to 100.000MHz
    • Equivalent series resistance (esr): 30 to 150©
    • Frequency tolerance (at 25°C): ±30ppm orcustomized
    • Frequency stability: ±30ppm or customized
    • Operating temperature range: -10 to 60, -20 to 70 or -40 to85°C
    • Storage temperature range: -40 to +85°C
    • Shunt capacitance: 7pf
    • Drive level: 100¼w
    • Load capacitance series: 16, 20, 30, 32pf or customized
    • Insulation resistance. 500MΩ minimum at 100V DC
  • Height 3.5mm, the volume is compact at about one-fourth of theformer product (hc-49u)
  • A resistance weld completely sealed type
  • Frequency stability is good and reliability is high
  • Copes with high density mounting and is the optimum for massproduction
  • High precision characteristic covering up to high frequencyrange
  • With RoHS, PB-free and REACH marks
  • Frequency range: 3.000 to 100.000MHz
  • Equivalent series resistance (esr): 30 to 150©
  • Frequency tolerance (at 25°C): ±30ppm orcustomized
  • Frequency stability: ±30ppm or customized
  • Operating temperature range: -10 to 60, -20 to 70 or -40 to85°C
  • Storage temperature range: -40 to +85°C
  • Shunt capacitance: 7pf
  • Drive level: 100¼w
  • Load capacitance series: 16, 20, 30, 32pf or customized
  • Insulation resistance. 500MΩ minimum at 100V DC
