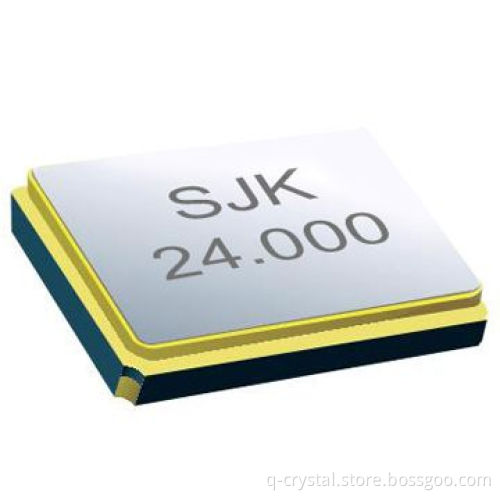

Quartz Crystal/Surface Mount Crystal, Small Size, Ultra-thin and Leadless Type

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Specifications:

High precision and high frequency stability

Excellent heat resistance and environmentalcharacteristics

Ultra-thin, small size

Lead less type

Certificate: RoHS

Output frequency range: 20.000 to 54.000MHz

Frequency tolerance (at 25°C): ±10 to ±30ppm,specify

Frequency stability over operating temperature: ±10 to±30ppm, specify

Storage temperature range: -55 to +125°C

Operating temperature range: -10 to +60, -20 to +70 and -40 to+85°C

Shunt capacity: 3.0pF (maximum)

Driver level: 10 to 100¼w

Load capacitance: series, 12pF, 16pF, 20pF, 30pF, 32pF orspecify

Aging (at 25°C): ±3ppm/year

Shock resistance: drop test of 3 times on 2mm stainless platefrom 75cm height
