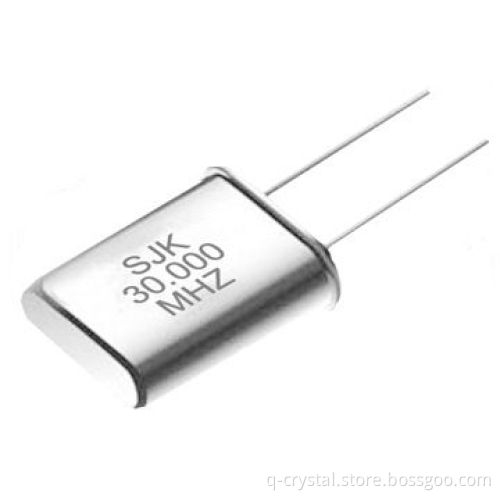

Quartz Crystal Series Resonator, 6A, HC-49/, 13.46mm Height

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Height: 13.46mm

A resistance weld completely sealed type

Frequency stability is good, the reliability is high

Copes with high-density mounting and is the optimum for massproduction

High precision characteristic covering up to high frequencyrange

Compliant with RoHS, Pb-free and REACH standards

Specifications:

Frequency range: 1.843 to 150,000MHz

Equivalent series resistance (ESR): 30 to 150©

Frequency tolerance (at 25°C): ±30ppm orspecify

Frequency stability: ±30ppm or specify

Operating temperature range: -10 to +60, -20 to +70, -40 to+85°C

Storage temperature range: -40 to +85°C

Shunt capacitance: 7pF

Drive level: 100¼W

Load capacitance: series, 16, 20, 30, 32pF or specify

Package: resistance welded

Aging: ±5ppm/year
