Preformed Line Products Tension Dead End, Suitable for ADSS Aerial Cable, Aluminum Clad Steel

Preformed Line Products Tension Dead End, Suitable for ADSS Aerial Cable, Aluminum Clad Steel

Get Latest Price

Payment Type:: T/T, LC, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, LC, Western Union

Product Description

Description:

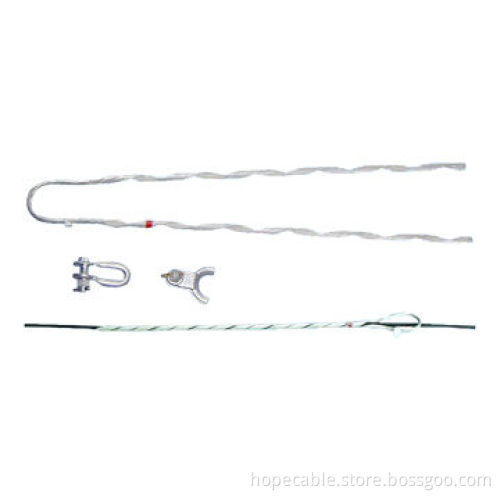

ADSS tension dead end
Specification model: ANJ 1280
Suitable span: less than 100m
Suitable diameter range: 9.0-17.0mm
Certification: ISO 9001:2008

Brief view:

Fiber-optic cable clamp tensions are designed to connect ADSS cables and poles
Aluminum clad steel rods can provide protection and cushioning to ADSS cables
Special design of helical protection rods makes ensure that tension sets can’t cause undue stress to ADSS cables
So that normal lifetime of cables system is ensured

Components and material:

Anchor shackle hot-dip galvanized steel
Anchor shackle is connected with reinforcing pole units
Eye chain link hot-dip galvanized steel
Eye chain link is intended for connecting anchor shackle and clevis thimble
Clevis thimble hot-dip galvanized cast steel
Clevis thimble is plugged in shackle of strain clamp for protection and connection
Inner protection rods Inner-protection rods are made of aluminum clad steel wire
Inner protection rods increase friction with layer of particle emery inside and decrease side pressure to cables
Rods are assembled into four subsets in workshop which reduce misalignment errors and speeds installation
Ends are bent outward to provide stress relief at critical cable departure areas
Outer reinforcing rods, rods are assembled into one subset with layer of firm emery inside in workshop in order to increase gripping strength of tension sets while decreasing side pressure
Sets are color marked to reduce misalignment errors and to install quickly

ADSS tension dead end

Specification model: ANJ 1280

Suitable span: less than 100m

Suitable diameter range: 9.0-17.0mm

Certification: ISO 9001:2008

Fiber-optic cable clamp tensions are designed to connect ADSS cables and poles

Aluminum clad steel rods can provide protection and cushioning to ADSS cables

Special design of helical protection rods makes ensure that tension sets can’t cause undue stress to ADSS cables

So that normal lifetime of cables system is ensured

Anchor shackle hot-dip galvanized steel

Anchor shackle is connected with reinforcing pole units

Eye chain link hot-dip galvanized steel

Eye chain link is intended for connecting anchor shackle and clevis thimble

Clevis thimble hot-dip galvanized cast steel

Clevis thimble is plugged in shackle of strain clamp for protection and connection

Inner protection rods Inner-protection rods are made of aluminum clad steel wire

Inner protection rods increase friction with layer of particle emery inside and decrease side pressure to cables

Rods are assembled into four subsets in workshop which reduce misalignment errors and speeds installation

Ends are bent outward to provide stress relief at critical cable departure areas

Outer reinforcing rods, rods are assembled into one subset with layer of firm emery inside in workshop in order to increase gripping strength of tension sets while decreasing side pressure

Sets are color marked to reduce misalignment errors and to install quickly
