2~144 Cores Single-mode/Multiple mode ADSS All Dielectric Self-supporting Aerial Fiber Optic Cable

2~144 Cores Single-mode/Multiple mode ADSS All Dielectric Self-supporting Aerial Fiber Optic Cable

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Description:

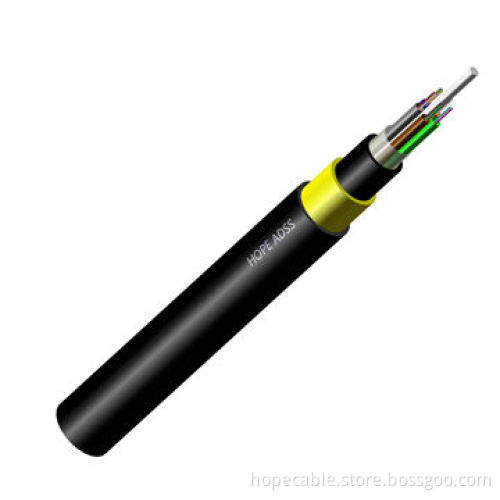

ADSS (all dielectric self-supporting aerial cable) is loose tube stranded fiber are positioned into a loose tube made of high-modulus plastic the tubes are filled with a water-resistant around FRP (fiber reinforced plastic) as a non-metallic central strength member into a compact and circular cable core after the cable core is filled with filling compound, it is covered with a thin polyethylene (PE) inner sheath after two layers of aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath

Characteristics:

Small cable diameter, lightweight, low-attached load on tower
Tension strength is over 90kN
Non-metal structure, good insulation, anti-thunder
Fine production technology, even force for aramid fiber, with superior stress flexibility
Anti-gun fire
Anti-electro-corrosion
Adapt for bad climate
Can construct without power cut, a power line failure doesn’t influence cable’s normal transfer
Loose cover GYTA cable core, non-metallic core reinforced
Tension units are elastic modulus aramid fiber
Good ultra-violet radiation resistant property

Applications:

Can be installed without shutting off the power
Excellent AT performance the maximum inductive at the operating point of AT sheath can reach 25kV
Lightweight and small diameter reducing the loading caused by ice and wind and the load on towers and back props
Large span lengths and the largest span is over 1,000m
Accurate control on aramid application greatly improving the strength of cables
Accurate fiber excess length and stranding pitch to ensure the good performance of tensile strength and temperature
The design lifespan is over 30 years

ADSS (all dielectric self-supporting aerial cable) is loose tube stranded fiber are positioned into a loose tube made of high-modulus plastic the tubes are filled with a water-resistant around FRP (fiber reinforced plastic) as a non-metallic central strength member into a compact and circular cable core after the cable core is filled with filling compound, it is covered with a thin polyethylene (PE) inner sheath after two layers of aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath

Small cable diameter, lightweight, low-attached load on tower

Tension strength is over 90kN

Non-metal structure, good insulation, anti-thunder

Fine production technology, even force for aramid fiber, with superior stress flexibility

Anti-gun fire

Anti-electro-corrosion

Adapt for bad climate

Can construct without power cut, a power line failure doesn’t influence cable’s normal transfer

Loose cover GYTA cable core, non-metallic core reinforced

Tension units are elastic modulus aramid fiber

Good ultra-violet radiation resistant property

Can be installed without shutting off the power

Excellent AT performance the maximum inductive at the operating point of AT sheath can reach 25kV

Lightweight and small diameter reducing the loading caused by ice and wind and the load on towers and back props

Large span lengths and the largest span is over 1,000m

Accurate control on aramid application greatly improving the strength of cables

Accurate fiber excess length and stranding pitch to ensure the good performance of tensile strength and temperature

The design lifespan is over 30 years
