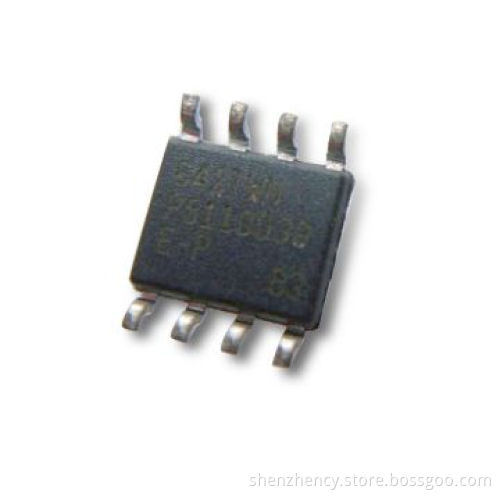

Integrated Circuit, AT26F00, Flash 4MBIT 33MHZ 8VDFN

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Applications:

Single 2.7 to 3.6V supply

Serial Peripheral Interface (SPI) compatible

Supports SPI modes 0 and 3

33MHz maximum clock frequency

Flexible, uniform erase architecture

4-Kbyte blocks

32-Kbyte blocks

64-Kbyte blocks

Full Chip erase

Optimized physical sectoring for code shadowing and code + datastorage

One 16-Kbyte top boot sector

Two 8-Kbyte sectors

One 32-Kbyte sector

Seven 64-Kbyte sectors

Individual sector protection for program/erase protection

Hardware controlled locking of protected sectors

Byte program architecture with sequential byte program modecapability

Sequential byte program mode improves throughout for

Programming multiple bytes

JEDEC Standard Manufacturer and device ID read methodology

Low power dissipation

7mA active read current (typical)

15 ¼A deep power-down current (typical)

Endurance: 100,000 program/erase cycles

Data retention: 20 years

Complies with full industrial temperature range

Industry Standard Green (Pb/Halide-free/RoHS-compliant) packageoptions

8-lead SOIC (150-mil and 208-mil wide)

8-pad MLF (6 x 5 x 1.00 mm)
