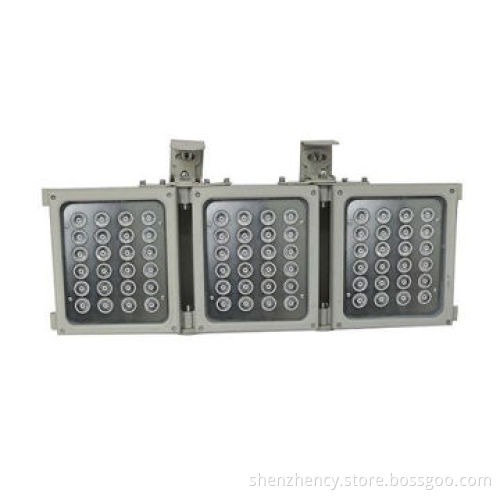

IR Illuminator, used at night

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Feature:

Accurate constant driver circuit develops excellent performanceof LED;
Dot matrix super power LED brings high efficacy, low lightdecay and long service life;
More energy saving by power factor correction, PF:0.9-0.98;
IP66 waterproof and -40 to +55 deg. C workingtemperature;

Technical specificatioins:

LED type: 72pcs 2W dot-matrix IR LED
Wavelength: 740nm/850nm/940nm
Bean angle: 15°-235°
Bean distance: 850m-250m
Bracket: wall mount bracket
Working voltage: AC85-265V/ DC12-24V/AC24V
Power consumption: 162W
Day/night switch: auto
Working temperature: -40°C to +55 deg. C
Protection level: IP66
Color: beige
Panel: tempered glass panel
Housing: aluminum die-casting housing
N.W/G.W: 12/13kg
Dimension: 210*630*124mm
Warranty: 2 years
Model beam angle viewing distance (850nm)

CYS243D-15-IR 15°-45° 850m-440m

CYS243D-30-IR 30°-90° 620m-370m

CYS243D-45-IR 45°-150° 450m-280m

CYS243D-60-IR 60°-180° 340m-210m

CYS243D-90-IR 90°-235° 250m-170m

Viewing distance is tested by Watec/WAT-902H 1/3" CCDCamera.

To achieve the distance needed, please pay attention to yourcamera specification and lens before purchase. It is normalphenomenon that distance may vary due to different cameras andlens.
