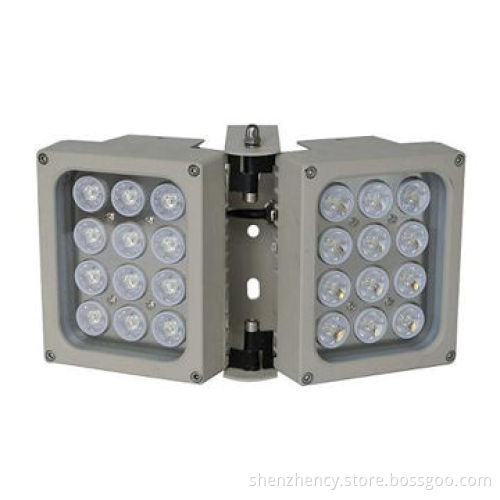

High-power infrared LEDs IR illuminator

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Accurate constant driver circuit develops good performance of LED
Dot-matrix super power LED brings high efficacy, low light decay and long service lifespan
More energy-saving by power factor correction (PF: 0.9 to 0.98)
IP66 water-resistant
Working temperature: -40 to +55°C

Technical specification:

LED type: 24pcs 2W Dot-matrix IR LED
Wavelength: 740/850/940nm
Beam angle: 15-140°
Bean distance: 380 to 120m
Bracket: wall-mounted
Working voltage: 110 to 265V AC/12 to 24V DC/24V AC
Power consumption: 56W
Day/night switch: auto
Working temperature: -40 to +55°C
Protection level: IP66
Color: beige
Panel: tempered glass panel
Housing: aluminum die-casting housing
Net weight: 3kg
Gross weight: 3.5kg
Beam angle viewing distance (850nm):
- CYS122D-15-IR: 15-30°, 380-250m
- CYS122D-30-IR: 30-60°, 320-220m
- CYS122D-45-IR: 45-90°, 270-190m
- CYS122D-60-IR: 60-120°, 220-160m
- CYS122D-90-IR: 90-140°, 180-120m
Viewing distance is tested by Watec/WAT-902H 1/3" CCD camera
To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens

Accurate constant driver circuit develops good performance of LED

Dot-matrix super power LED brings high efficacy, low light decay and long service lifespan

More energy-saving by power factor correction (PF: 0.9 to 0.98)

IP66 water-resistant

Working temperature: -40 to +55°C

LED type: 24pcs 2W Dot-matrix IR LED

Wavelength: 740/850/940nm

Beam angle: 15-140°

Bean distance: 380 to 120m

Bracket: wall-mounted

Working voltage: 110 to 265V AC/12 to 24V DC/24V AC

Power consumption: 56W

Day/night switch: auto

Working temperature: -40 to +55°C

Protection level: IP66

Color: beige

Panel: tempered glass panel

Housing: aluminum die-casting housing

Net weight: 3kg

Gross weight: 3.5kg

Beam angle viewing distance (850nm):

CYS122D-15-IR: 15-30°, 380-250m
CYS122D-30-IR: 30-60°, 320-220m
CYS122D-45-IR: 45-90°, 270-190m
CYS122D-60-IR: 60-120°, 220-160m
CYS122D-90-IR: 90-140°, 180-120m

Viewing distance is tested by Watec/WAT-902H 1/3" CCD camera

To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens

CYS122D-15-IR: 15-30°, 380-250m

CYS122D-30-IR: 30-60°, 320-220m

CYS122D-45-IR: 45-90°, 270-190m

CYS122D-60-IR: 60-120°, 220-160m

CYS122D-90-IR: 90-140°, 180-120m
