Product Description
Product Description
  • Specifications:

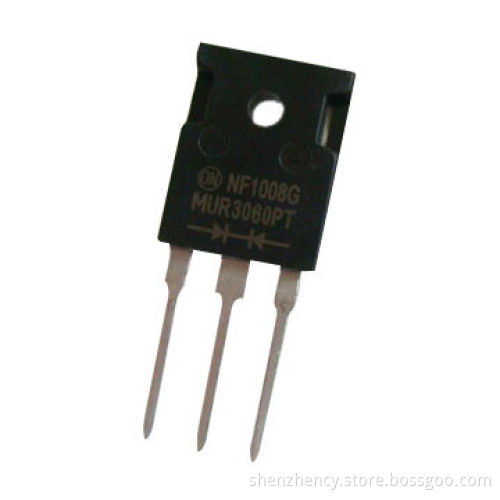

    • MUR3, 060PT, ultra fast recovery rectifier:
      • VRRM: 600V
      • Io at Ta: 30A at 130°C
      • Trr: 60ns
      • Package: TO-3P
      • Certification: RoHS
    • MUR3, 060PT, ultra fast recovery rectifier diode:
      • Part number: MUR3,060PT
      • Peak repetitive reverse voltage (VRRM): 600V
      • Maximum average rectified current (Io at Ta): 30A at130°C
      • Maximum reverse recovery time (Trr): 60ns, environment-friendlyproducts and no Pb
      • Package: TO-3P/TO-247AD, GPP (Glass Passivated Chip Junction)epitaxial wafer
      • Certification: SGS report
    • Features:
      • Dual rectifier construction, positive center-tap
      • Plastic package has Underwriters laboratory
      • Flammability classification 94V0
      • Glass passivated chip junctions
      • Superfast recovery time, high voltage
      • Low forward voltage, high current capability
      • Low thermal resistance
      • Low power loss, high efficiency
      • High temperature soldering guaranteed: 260°C, 0.16-inch(4.06mm) from case for 10 seconds
    • Mechanical data:
      • Cases: TO-3P/TO-247AD molded plastic
      • Terminals: pure tin-plated, lead-free solderable perMIL-STD-750 Method 2026
      • Polarity: as marked
      • Mounting position: any
      • Mounting torque: 10in-lb maximum
      • Weight: 0.2oz, 5.6g
  • MUR3, 060PT, ultra fast recovery rectifier:
    • VRRM: 600V
    • Io at Ta: 30A at 130°C
    • Trr: 60ns
    • Package: TO-3P
    • Certification: RoHS
  • MUR3, 060PT, ultra fast recovery rectifier diode:
    • Part number: MUR3,060PT
    • Peak repetitive reverse voltage (VRRM): 600V
    • Maximum average rectified current (Io at Ta): 30A at130°C
    • Maximum reverse recovery time (Trr): 60ns, environment-friendlyproducts and no Pb
    • Package: TO-3P/TO-247AD, GPP (Glass Passivated Chip Junction)epitaxial wafer
    • Certification: SGS report
  • Features:
    • Dual rectifier construction, positive center-tap
    • Plastic package has Underwriters laboratory
    • Flammability classification 94V0
    • Glass passivated chip junctions
    • Superfast recovery time, high voltage
    • Low forward voltage, high current capability
    • Low thermal resistance
    • Low power loss, high efficiency
    • High temperature soldering guaranteed: 260°C, 0.16-inch(4.06mm) from case for 10 seconds
  • Mechanical data:
    • Cases: TO-3P/TO-247AD molded plastic
    • Terminals: pure tin-plated, lead-free solderable perMIL-STD-750 Method 2026
    • Polarity: as marked
    • Mounting position: any
    • Mounting torque: 10in-lb maximum
    • Weight: 0.2oz, 5.6g
  • VRRM: 600V
  • Io at Ta: 30A at 130°C
  • Trr: 60ns
  • Package: TO-3P
  • Certification: RoHS
  • Part number: MUR3,060PT
  • Peak repetitive reverse voltage (VRRM): 600V
  • Maximum average rectified current (Io at Ta): 30A at130°C
  • Maximum reverse recovery time (Trr): 60ns, environment-friendlyproducts and no Pb
  • Package: TO-3P/TO-247AD, GPP (Glass Passivated Chip Junction)epitaxial wafer
  • Certification: SGS report
  • Dual rectifier construction, positive center-tap
  • Plastic package has Underwriters laboratory
  • Flammability classification 94V0
  • Glass passivated chip junctions
  • Superfast recovery time, high voltage
  • Low forward voltage, high current capability
  • Low thermal resistance
  • Low power loss, high efficiency
  • High temperature soldering guaranteed: 260°C, 0.16-inch(4.06mm) from case for 10 seconds
  • Cases: TO-3P/TO-247AD molded plastic
  • Terminals: pure tin-plated, lead-free solderable perMIL-STD-750 Method 2026
  • Polarity: as marked
  • Mounting position: any
  • Mounting torque: 10in-lb maximum
  • Weight: 0.2oz, 5.6g
