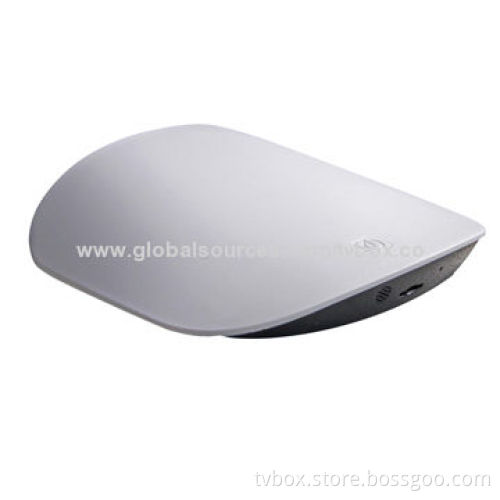

Digital TV STB with Dual-core RK3066 CPU
  • Digital TV STB with Dual-core RK3066 CPU
  • Digital TV STB with Dual-core RK3066 CPU
  • Digital TV STB with Dual-core RK3066 CPU
  • Digital TV STB with Dual-core RK3066 CPU
Digital TV STB with Dual-core RK3066 CPU
Digital TV STB with Dual-core RK3066 CPU
Digital TV STB with Dual-core RK3066 CPU
Digital TV STB with Dual-core RK3066 CPU

Digital TV STB with Dual-core RK3066 CPU

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Size: 155*104*27mm
  • Chipset CPU: RK3066
  • Architecture: dual-core, Cortex A9
  • Frequency: up to 1.6GHz
  • GPU: quad-core, Mali-400 (OpenGL ES2.0/1.1, OpenVG1.1, Flash 11.1)
  • Operating system: Android 4.2.2
  • OSD: default English
  • Multiple languages: Android 4.2 standard
  • UI: ZDT
  • RAM density: 1GB DDR3
  • Organization: 256Mx8-bitx4 pieces
  • Nand flash density: 4GB (default) optional
  • Wi-Fi module standard: 802.11b/g/n
  • Bluetooth module: standard Bluetooth 4.0
  • Video output: HDMI 1.4a, full HD 1080p, 3D movie file format supported
  • CVBS: (PAL/NTSC) output
  • Audio output: HDMI 1.4a
  • L/R: audio output
  • SPDIF: output
  • Peripheral interface: USB 2.0 port * 3
  • RJ45 Ethernet jack (10/00Mbps)
  • SD/MMC card reader
  • Power: 5V DC, 2A
  • Indicator lamp system status indicators running: blue
  • Standby: red
  • Audio formats decoder: MPEG1/2 audio layer 1/2/3
  • Formats: MP3 player, AAC, WMA, OGG, FLAC, M4A, APE, AC3, AMR, DTS, RA and WAV
  • Video formats decoder: H.264/H.263, MPEG4/2/1, VP8, WMV/VC-1, AVS, real video 8/9/10 and WebM
  • Formats: MKV, WMV, MPEG, MPG, MP4 player, AVI, DivX4/5/6, XviD, RM, RMVB, VOB, DAT, MOV, ISO, PMP, FLV, M4V and 3GP
  • Resolution: up to 1920x1080p
  • Picture formats: JPEG, BMP, PNG and GIF
  • Resolution: no size limitation
