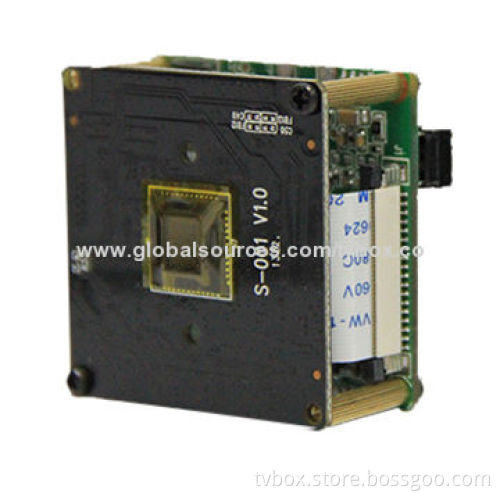

IR and day/night cameras module with TI solution 1.0 megapixel 720P DM365/DM368+OV9712New

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Western Union

Product Description

HD-720P-38*38mm

1.0 megapixel low-illumination HD web camera

Sensor type: 1/4-inch, 1.0 megapixel, CMOS low-illumination width dynamic sensor

Minimum illumination color: 1 Lux/F1.2, black and white: 0.02Lux/F1.2

Electronic shutter: 1/5 second - 1/50,000 second

Lens port type: C/CS port

Automatic aperture: DC driven

Lens focal length: 3.6mm, 6mm, 8mm, 12mm, 16mm, 25mm optional

Video compression standards: H.264 main profile level 5.0

Video compression rate 300Kbit/S-8Mbit/S

Audio compression standards: G.711

Exposure mode: auto exposure, auto white balance, automatic tone-up

Video resolution: 1280×720 (25fps) PAL, 1280×720 (30fps) NTSC

Frame rate: 1-30 frames/sec

Playback frame rate: 1280 x 720 (25fps) PAL, 1280 x 720 (12.5fps) PAL, 1280 x 720 (30fps) NTSC, 1280 x 720 (15fps) NTSC

Pixels width dynamic range: 70dB

Image setting: saturation, brightness, contrast adjustable via client terminal or IE browser

Remote browse: support 320×192, 640×360 remote real-time browse and control

Client management: offer multi-user hierarchical rights management, and allows multiple users to simultaneously access the equipment

Remote reset and update: remotely reset system and update hardware via web

Storage function: support SD card storage

Intelligent alarm: mobile detection, video loss, cable breakage, IP address conflicts, full memory, memory fault, I/O alarm

Supported protocols: RTSP, TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP and NTP

Universal functions: one key reset, anti-flicker, dual-stream, heartbeat, password protection, built-in watchdog

Audio input/output*1

Communication port RJ45 10M/100M adaptive Ethernet port*1, RS-485 port*1

Alarm input*1

Alarm output*1

D1 analog video output*1

Operating temperature and humidity: -35℃-70℃, humidity: <90% (non-condensing)

Power supply: DC 12V±10%/PoE

IR-cut voltage: 12V

Power consumption: <2W

Size: 38×38mm

Weight: 50g

Photoresistance voltages: 5-12V
