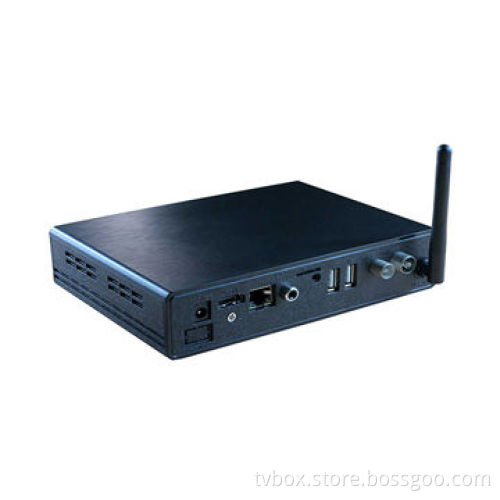

DVB-S2 Receivers, AML 8726MX Dual-core
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
Product Description
Product Description
- CPU: AML8726-MX Up to 1.5GHz ARM Cortex Dual-core A9
- GPU: Dual core 3D GPU
- Operation platform: Google Android v4.2.2
- RAM: 1GB DDR Ⅲ
- Nand Flash: 8GB internal flash (up to 32GB)
- External memory: Supports micro SD card (up to 32GB)
- Support BISS, CCCAM, NEWCAM session key (optional)
- DEMO: AVL6211, TUNER: AV2012
- DVB-S2 system standard: ETS 302 307
- Symbol rates: QPSK, 8PSK
- Forward error correction rate 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
- Carrier frequency acquisition range: ±5MHz for symbol rates above
- 3 Msps and ±3MHz for the remaining symbol rates
- Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
- Symbol rates: 1- 5Msps
- Code rates: 1/2, 2/3, 3/4, 5/6, 7/8
- Input signal level: -84 dBm to 0 dBm (average power)
- ANT. connector: IEC TYPE, female loop output: IEC TYPE, male
- DTMB-TH/DVB-T/T2/DVB-T2/ATSC/ISDB-T (optional)
- Built-in Wi-Fi module, IEEE 802.11b/g/n
- Support RJ-45 Ethernet network
- Miracast: Mirroring the screen of phone or PAD to TV
- DLNA: Pushed the video, audio, pictures from phone or network to TV
- Airplay: Pushed the video, audio, pictures from iPhone or IPAD to TV
- GoogleTV remote: Through Wi-Fi network to realize control the product
- LAN: Through the LAN, can check other devices to share information
- 3D movie: Supports 3D movie
- Motivator air-mouse: Supports the body feeling game, such as playing tennis, paper planes, shooting & more
