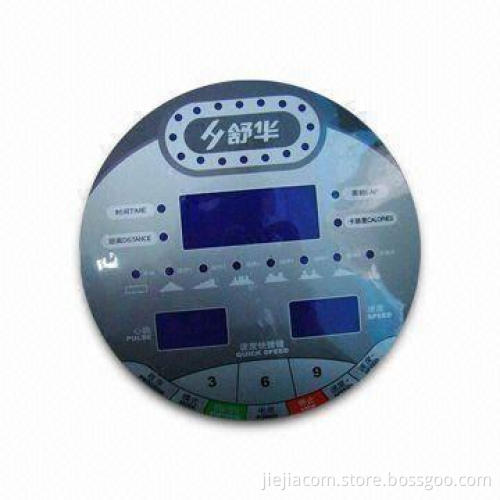

Sticker with 2.54, 2.50, 1.27, 1.25mm Cable Pitch and High Technology Printing Membrane Overlay
  • Sticker with 2.54, 2.50, 1.27, 1.25mm Cable Pitch and High Technology Printing Membrane Overlay
  • Sticker with 2.54, 2.50, 1.27, 1.25mm Cable Pitch and High Technology Printing Membrane Overlay
Sticker with 2.54, 2.50, 1.27, 1.25mm Cable Pitch and High Technology Printing Membrane Overlay
Sticker with 2.54, 2.50, 1.27, 1.25mm Cable Pitch and High Technology Printing Membrane Overlay

Sticker with 2.54, 2.50, 1.27, 1.25mm Cable Pitch and High Technology Printing Membrane Overlay

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Diametric overlays and membranes can be found on a wide rangeof products in many different industry areas, including:
    • Scientific equipment
    • Radio frequency equipment
    • Photography
    • Computing
    • AV equipment
    • Remote controls
    • Air filtration units
  • Overlay material: polyester (PET) or polycarbonate (PC)
  • Rear adhesive: 3M467MP, 3M468MP and more
  • Matching color (Pantone and RAL color matching system)
  • Gloss, semi-gloss or matte
  • Maximum circuit rating: 35VDC, 100mA, 1W
  • Contact resistance: 10 to 500Ω
  • Insulation resistance: 100MΩ at 100VDC
  • Dielectric withstand: 250Rms (50 to 60Hz per minute)
  • Contact bounce: <5m seconds
  • Actuation force:
    • Flat type 60 to 300g (2 to 10oz)
    • Tactile type: 150 to 400g (6 to 14oz)
  • Switch stroke:
    • Flat type: 0.1 to 0.5mm
    • Tactile type: 0.6 to 1.5mm
  • Cable pitch: 2.54, 2.50, 1.27, 1.25mm
  • Dimension tolerance: ±0.2mm
  • Operating temperature: -20 to 70°C
  • Storage temperature: -40 to 80°C
  • Humidity: 40°C, 90 to 95% RH for 240 hours
  • Life expectancy:
  • Flat type: 5,000,000 closures or more
  • Tactile type: 1,000,000 closures or more
  • Scientific equipment
  • Radio frequency equipment
  • Photography
  • Computing
  • AV equipment
  • Remote controls
  • Air filtration units
  • Flat type 60 to 300g (2 to 10oz)
  • Tactile type: 150 to 400g (6 to 14oz)
  • Flat type: 0.1 to 0.5mm
  • Tactile type: 0.6 to 1.5mm
