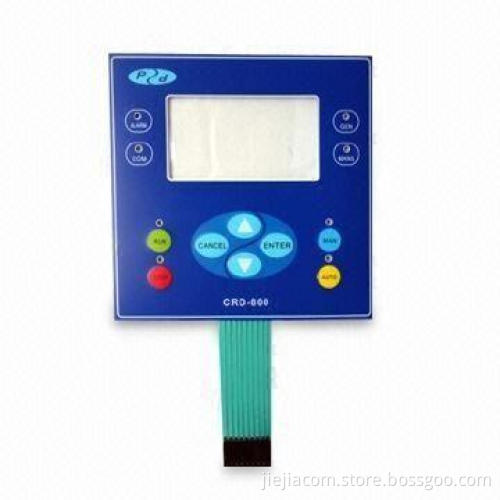

Poly Dome Tactile Membrane Keypad Switch, Made of PET and PC Materials

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Materials: PET and PC
With FPC circuit on the back
Tail termination: either male or female connectors
Waterproof type

Specifications:

Maximum circuit rating: 35V DC, 100mA, 1W
Contact resistance: 10 to 500© (varied from the tracelength and material)
Insulation resistance: 100M© at 100V
Dielectric withstand: 250Vrms (50 to 60Hz/minute)
Contact bounce: 5ms or less
Tactile type actuation force: 150 to 400g (6 to 14oz)
Tactile type switch stroke: 0.6 to 1.5mm
Tactile type life expectancy: 1,000,000 closures or more
Surface hardness: 3H or more
Operating temperature: -40 to +80 degrees Celsius
Storage temperature: -40 to +85 degrees Celsius
Operating humidity: 90 to 95% RH (at 40 degrees Celsius) for240 hours
OEM orders are welcomed

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Materials: PET and PC

With FPC circuit on the back

Tail termination: either male or female connectors

Waterproof type

Maximum circuit rating: 35V DC, 100mA, 1W

Contact resistance: 10 to 500© (varied from the tracelength and material)

Insulation resistance: 100M© at 100V

Dielectric withstand: 250Vrms (50 to 60Hz/minute)

Contact bounce: 5ms or less

Tactile type actuation force: 150 to 400g (6 to 14oz)

Tactile type switch stroke: 0.6 to 1.5mm

Tactile type life expectancy: 1,000,000 closures or more

Surface hardness: 3H or more

Operating temperature: -40 to +80 degrees Celsius

Storage temperature: -40 to +85 degrees Celsius

Operating humidity: 90 to 95% RH (at 40 degrees Celsius) for240 hours

OEM orders are welcomed
