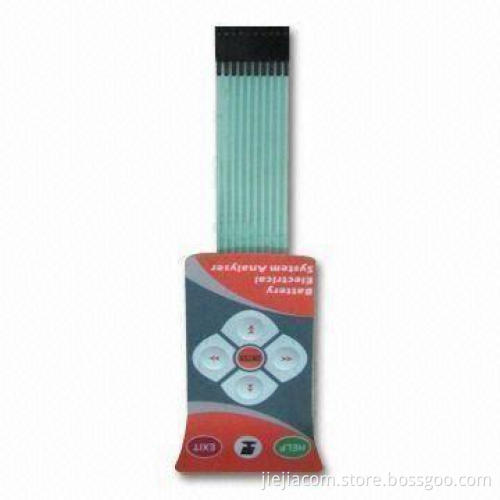

Membrane Switch with 25 to 100mA Contact Current and 2 to 24V Voltage Rating

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash, Bank Transfer, T/T

Product Description

Materials: PC, PVC and PET

Can manufacture according to client's design

Keypad button material England polyester PET

Application: equipment/household appliances/electronic productsand more

Contact current: 25 to 100mA

Voltages: 2 to 24V

Insulation resistance: 500V DC/500MΩ

Temperatures: -40 to 85°C

Matching color: Pantone and RAL

Overlay materials: the most commonly used base materials arepolyester (PET) and polycarbonate (PC)

Rear adhesive: 3M9448MP 3M468

Matching color: Pantone and RAL color matching system

Gloss, semi-gloss or matte

Metal dome tactile

Standard tolerances: ±0.10 inch (±0.25mm)

Electric parameter:

Physical parameter:

Resistance: <1©/cm

Contact current: 25 to 100mA

Voltage rating: 2 to 24V

Voltage insulation: 1,500V

Voltage endurance: 250V (60Hz/min)

Active force: 0.3 to 3N

Life cycle: >1mil (non-tactile)

Hand speed: d5ms

Temperatures: -40 to 85°C

Humidity: 40, 48h, 95%

Working altitude: 0 to 4,500m
