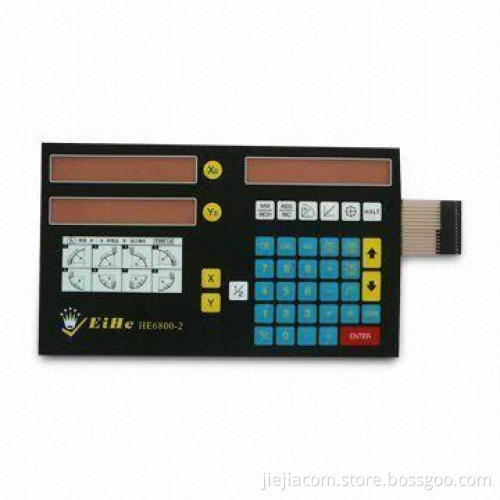

Graphic Overlay/Membrane Panel/Keyboard, Made of PET and PC Materials

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Conductive keypad panel with unique cosmetic design

We offer full range designs of membrane keyboard switches:

Membrane switch specifications:

With LED and EL backlight

With silicone rubber keypad

With flexible FPC

With EL plate

With tail termination either male or female connectors

Water-resistant type membrane switch

ITO touch screen embedded membrane switch

OEM orders are welcome

Maximum circuit rating: 35V DC, 100mA, 1W

Contact resistance: 10 to 500© (varied from the tracelength and material)

Insulation resistance: 100M© at 100V

Dielectric withstand: 250Vrms (50 to 60Hz/minimum)

Contact bounce: 5ms or less

Actuation force:

Switch stroke:

Lifespan:

Surface hardness: 3H or more

Operating temperatures: -40 to 80°C

Storage temperatures: -40 to 85°C

Humidity: 90 to 95% (40°C) for 240 hours

Materials: PET and PC

Tactile type: 150 to 400g (6 to 14 ounce)

Tactile type: 0.6 to 1.5mm

Tactile type: 1, 000, 000 closures or more
