Electronic Components, Supplier, BSC035N04LS G, Infineon Technologies

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Data sheets: BSC035N04LS G

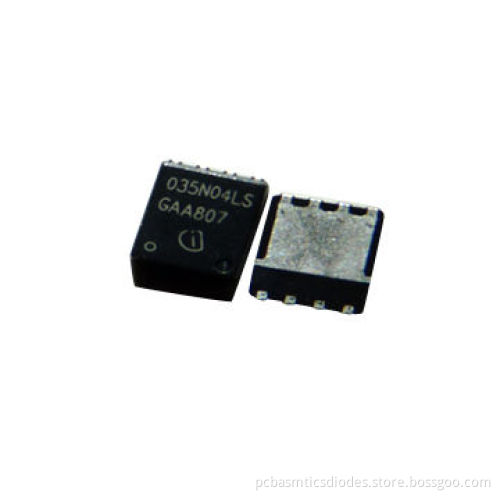

Product photos: 8-power TDFN

Standard package: 5,000

Category: discrete semiconductor products

Family FETs - single

Series: OptiMOS

Packaging: tape and reel (TR)

FET type: MOSFET N-channel, metal oxide

FET feature: logic level gate

Drain to source voltage (Vdss): 40V

Current - continuous drain (Id) at 25°C 21A (Ta), 100A (Tc)

Rds on (max) at Id, Vgs 3.5mΩ at 50A, 10V

Vgs (th) (max) at Id 2V at 36µA

Gate charge (Qg) at Vgs 64nC at 10V

Input capacitance (Ciss) at Vds 5100pF at 20V

Power - max: 69W

Mounting type: surface mount

Packaging/case: 8-power TDFN

Supplier device package: PG-TDSON-8 (5.15x6.15)

Dynamic catalog N-channel logic level gate FETs
