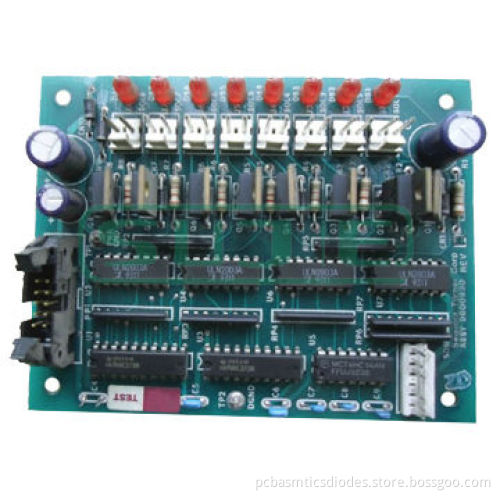

PCB Assembly for Alarm Control Panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT or LC at Sight, PayPal

Product Description

Layers: 1-22

Materials: FR-1, FR-2, FR-4, CEM-1, CEM-3, high TG, FR-4 halogen-free and getek

Board thickness: 0.2-3.5mm

Maximum panel size: 630*520mm

Minimum drilled hole size: 0.2mm

Minimum line width: 0.075mm (3mil)

Minimum line spacing: 0.075mm (3mil)

Surface finish/treatment: HASL lead-free, chemical tin, chemical gold, immersion gold, immersion silver/gold, OSP and gold plated

Copper thickness: 0.5oz minimum and 5.0oz maximum

Solder mask colors: green/black/white/red/blue/yellow

Electronic component: high precision 0201, 0402, 0603, fine pitch GPH and BGA

Hole tolerance:

Profiling punching routing, v-cut and beveling

Division focuses on OEM/ODM for 1 to 22 layers

60% of the assembly process is fully automated, includes SMT assembly and auto-insertion

Equipment imported from the us and japan

3-handle all customer's needs, component purchasing and other product assemblies

Customers may submit drawings or samples to our r and d team

Various requests are accepted irrespective of size

Provide other electronic components

Single-, double-sided and multilayer

X-ray and ICT and function test

100% testing and clean each board

Well packed

2-year warranty

PTH: ±0.076

NTPH: ±0.05
