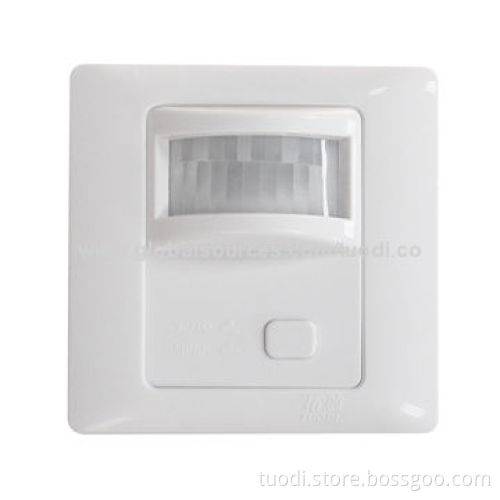

Motion Sensor Wall Light Switch with 140 Degrees Conning Angle, Induction Mode Passive

Motion Sensor Wall Light Switch with 140 Degrees Conning Angle, Induction Mode Passive

Get Latest Price

Payment Type:: T/T, Western Union, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal

Product Description

Specifications:

Function description: relay controls load
Operating voltage: 100-265V AC
Frequency: 50-60Hz
Operating temperature: -20-+50°C
Static power: <0.026W
Loading power: 1,000W
Loading capacity all kinds of lights, appliances
Connecting style bipolarity
Output mode: induction output
Light control range: 5-500 Lux ±20% (adjustable)
Delay shutdown time 16-350 seconds ±30%(adjustable)
Induction mode passive
Induction angle 140° coning angle, all-direction
Detecting distance: 8-10m
Installing method standard 86 models, wall installation, ceiling installation
Dimensions/color: 86 x 86mm/porcelain

Functions and features:

Automatic induction: when people enter into the range of induction, it will turn on, when people leave, it will turn off with delay
Which have the function of automatic lighting and control
Photosensitive control: it adopting photoactive control, it doesn't turn-on during daylight or in strong light environment
Automatic random delay: after it turn-on, in the delay period, if there is presence of people, it keeps on working until people leave, than turn- on with delay
Status indicator: efficient LED indicator, which is easy for installation and fault analysis
Temperature compensation: tuodi specialized temperature compensation chip, which used to reducing the effect of temperature on detecting distance

Applications:

It can be applied to corridor, passageway, toilet, basements, warehouses, garage and more

Function description: relay controls load

Operating voltage: 100-265V AC

Frequency: 50-60Hz

Operating temperature: -20-+50°C

Static power: <0.026W

Loading power: 1,000W

Loading capacity all kinds of lights, appliances

Connecting style bipolarity

Output mode: induction output

Light control range: 5-500 Lux ±20% (adjustable)

Delay shutdown time 16-350 seconds ±30%(adjustable)

Induction mode passive

Induction angle 140° coning angle, all-direction

Detecting distance: 8-10m

Installing method standard 86 models, wall installation, ceiling installation

Dimensions/color: 86 x 86mm/porcelain

Automatic induction: when people enter into the range of induction, it will turn on, when people leave, it will turn off with delay

Which have the function of automatic lighting and control

Photosensitive control: it adopting photoactive control, it doesn't turn-on during daylight or in strong light environment

Automatic random delay: after it turn-on, in the delay period, if there is presence of people, it keeps on working until people leave, than turn- on with delay

Status indicator: efficient LED indicator, which is easy for installation and fault analysis

Temperature compensation: tuodi specialized temperature compensation chip, which used to reducing the effect of temperature on detecting distance

It can be applied to corridor, passageway, toilet, basements, warehouses, garage and more
