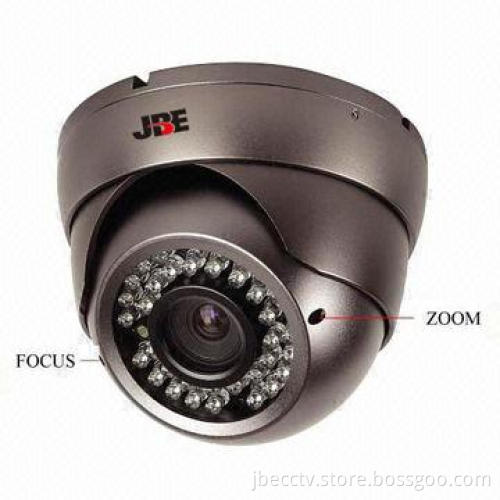

CCTV IR Dome Camera with Metal Housing, 1/3-inch Sony CCD Image Sensor and PAL/NTSC System
  • CCTV IR Dome Camera with Metal Housing, 1/3-inch Sony CCD Image Sensor and PAL/NTSC System
CCTV IR Dome Camera with Metal Housing, 1/3-inch Sony CCD Image Sensor and PAL/NTSC System

CCTV IR Dome Camera with Metal Housing, 1/3-inch Sony CCD Image Sensor and PAL/NTSC System

Get Latest Price
Payment Type:
T/T in Advance or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance or Western Union
Product Description
Product Description
  • Features:
    • With metal housing
    • LED quantity: 36 pieces
    • IR LED range: 30m
    • Supports IP66 weather-resistant standard
    • Manual 4 to 9mm varifocal lens
    • Zoom and focus adjust
    • Auto tracking white balance
    • Double glass + hoop unique design
    • Colors: black, gray and purple (optional)
  • Specifications:
    • System: PAL/NTSC
    • Image sensor: 1/3-inch Sony CCD
    • Picture elements:
      • PAL (H x V): 752 x 582 pixels
      • NTSC (H x V): 768 x 494 pixels
    • Video output: 1.0Vp-p, 75© composite, BNC x 1
    • Horizontal resolution: 420, 480, 540, 600, 650 and 700TVL
    • S/N ratio: ≥48dB
    • Minimum illumination: 0.00 Lux (LED-on)
    • Illumination: 0.5 Lux
    • Electronic shutter time: 1/50 to 1/100,000 seconds
    • White balance: automatic
    • Gamma ratio: ≥0.45
    • Infrared spectrum: infrared sensitive
    • Operating temperature (outdoor): -10 to 50°C
    • Humidity: 0 to 95% RH (non-condensing)
    • Synchronization system: 2:1 interlace internal
    • Power supply: 12V DC, 250mA
    • Weight: 0.6kg
  • With metal housing
  • LED quantity: 36 pieces
  • IR LED range: 30m
  • Supports IP66 weather-resistant standard
  • Manual 4 to 9mm varifocal lens
  • Zoom and focus adjust
  • Auto tracking white balance
  • Double glass + hoop unique design
  • Colors: black, gray and purple (optional)
  • System: PAL/NTSC
  • Image sensor: 1/3-inch Sony CCD
  • Picture elements:
    • PAL (H x V): 752 x 582 pixels
    • NTSC (H x V): 768 x 494 pixels
  • Video output: 1.0Vp-p, 75© composite, BNC x 1
  • Horizontal resolution: 420, 480, 540, 600, 650 and 700TVL
  • S/N ratio: ≥48dB
  • Minimum illumination: 0.00 Lux (LED-on)
  • Illumination: 0.5 Lux
  • Electronic shutter time: 1/50 to 1/100,000 seconds
  • White balance: automatic
  • Gamma ratio: ≥0.45
  • Infrared spectrum: infrared sensitive
  • Operating temperature (outdoor): -10 to 50°C
  • Humidity: 0 to 95% RH (non-condensing)
  • Synchronization system: 2:1 interlace internal
  • Power supply: 12V DC, 250mA
  • Weight: 0.6kg
  • PAL (H x V): 752 x 582 pixels
  • NTSC (H x V): 768 x 494 pixels
