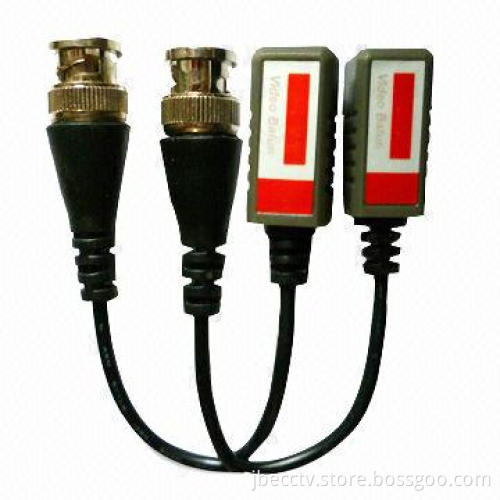

Video Balun, One Channel Passive Video Transceiver, Transmitting Video Signals Over UTP
  • Video Balun, One Channel Passive Video Transceiver, Transmitting Video Signals Over UTP
Video Balun, One Channel Passive Video Transceiver, Transmitting Video Signals Over UTP

Video Balun, One Channel Passive Video Transceiver, Transmitting Video Signals Over UTP

Payment Type:
T/T in Advance or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance or Western Union
Product Description
Product Description
  • Specifications:
    • One channel passive video transceiver
    • Receiving and transmitting video signals over UTP cable withoutusing the power supply
    • Video:
    • Frequency response: DC-6MHz common/differential mode
    • Rejection: 15kHz, 6MHz, 60dB type
  • Audio/data: supported
  • Power: not supported
  • Impedance:
  • Coax, male BNC: 75 Ohms UTP (screw less)
  • Terminal block: UTP RJ45
  • One channel passive video transceiver
  • Receiving and transmitting video signals over UTP cable withoutusing the power supply
  • Video:
  • Frequency response: DC-6MHz common/differential mode
  • Rejection: 15kHz, 6MHz, 60dB type
  • Data connectors: 100
  • Wire type: one unshielded twisted pair 24-16AWG (0.5 to 131mm)per video signal
  • DC loop resistance 52© per 1,000ft (18© per100m)
  • UTP port: RJ45
  • Dimensions: 32 x 21 x 15mm
  • Environment:
  • Temperatures: -10 to 50°C
  • Humidity range: 0 to 95% RH
