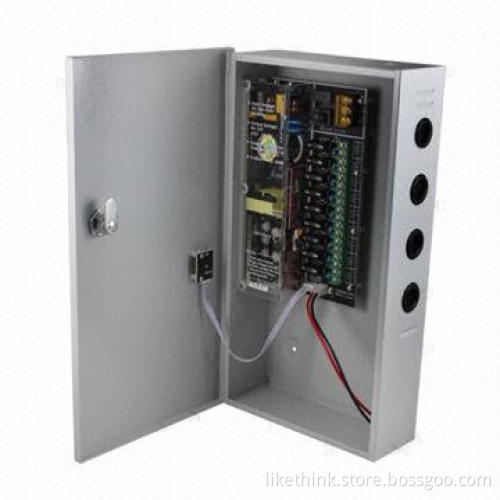

12V DC/8A/9CH Uninterruptible Power Supply, Over-current Protection and Short-circuit Protection
  • 12V DC/8A/9CH Uninterruptible Power Supply, Over-current Protection and Short-circuit Protection
12V DC/8A/9CH Uninterruptible Power Supply, Over-current Protection and Short-circuit Protection

12V DC/8A/9CH Uninterruptible Power Supply, Over-current Protection and Short-circuit Protection

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Description:
    • Use of efficient, environmental protection switching power supply circuit frame
    • Optimization of the shape and structure to facilitate the construction systems
    • Small ripple and noise video output signal more stable, clearly images
    • Splitter output by-pass failure to protect other equipment to work
    • Power protection output over-voltage protection, over-current protection, short-circuit protection
  • Specifications:
    • Input: 100-240V AC at 50-60Hz
    • Output voltage: 12-14V DC ADJ
    • Output current: 8Amp
    • Output channel: 9 channels
    • Over-current Protection: 9A ±5%
    • Ripple and noise: ≤100mV
    • Efficiency: ≥85%
    • Charge voltage: 13.5V
    • Charge current: 1A (maximum)
    • Battery under-voltage protection: 10V
    • Supports 7Ah/9Ah battery
    • Enclosure dimensions: 360 x 195 x 75mm
    • Weight: 2.4kg
  • Use of efficient, environmental protection switching power supply circuit frame
  • Optimization of the shape and structure to facilitate the construction systems
  • Small ripple and noise video output signal more stable, clearly images
  • Splitter output by-pass failure to protect other equipment to work
  • Power protection output over-voltage protection, over-current protection, short-circuit protection
  • Input: 100-240V AC at 50-60Hz
  • Output voltage: 12-14V DC ADJ
  • Output current: 8Amp
  • Output channel: 9 channels
  • Over-current Protection: 9A ±5%
  • Ripple and noise: ≤100mV
  • Efficiency: ≥85%
  • Charge voltage: 13.5V
  • Charge current: 1A (maximum)
  • Battery under-voltage protection: 10V
  • Supports 7Ah/9Ah battery
  • Enclosure dimensions: 360 x 195 x 75mm
  • Weight: 2.4kg
