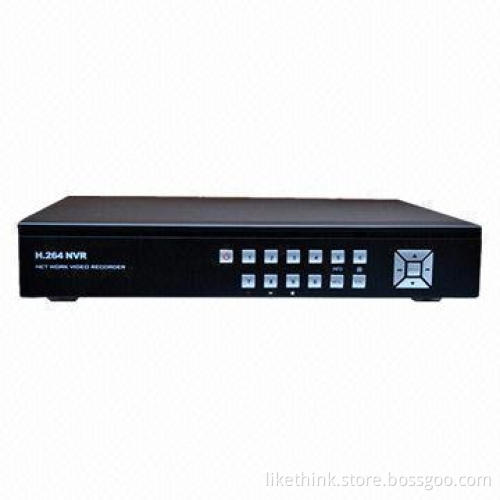

NVR with 16-channel Digital Video Input and Real-time Video, Supports VGA, HDMI, Onvif, Mobile

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram or PayPal

Product Description

Main processor: high-performance embedded microprocessor-20A

Operating system: embedded Linux OS

Video compression format: H.264

Display image resolution: 12fps/channel at 1,080P, 960P, 25fps/channel at 720P, D1, VGA

Playback image resolution: 720P at 25fps/960P at 25fps/1,080P at 30fps

Motion detection can setup 192 (16 x 12 pieces) motion detection area each channel and multilevel sensitivity (1-6 levels are adjustable)

Privacy masking: depends on IPC

Audio compression format: ADPCM

Two-way audio: 1 channel

Recording modes: manual recording, motion detection recording, time recording, alarm

Recording storage: HDD, network

Frame rate: 25fps

Recording playback: maximum supports of 4-channel 960P or 2-channel 1,080P synchronously playback

Backup mode: supports HDD, USB flash disk store and backup

Video: network video input 16-channel 1,080P

Video output: 1 channel CVBS (BNC), 1 channel VGA and 1 channel HDMI®

Audio input: 16-channel IPC composite audio

Audio output: 1 channel (supports two-way audio)

Alarm input: 8-channel alarm input

Alarm output: 1 channel alarm output

Network: 1 x 10/100Mbps, RJ45 port

RS485: standard 485 port, supports half-duplex, green terminal port

USB: 2 USB2.0 ports

HDD: supports 2 pieces SATA HDD inside (maximum 3T)

Power supply: +12V DC/4A

Power consumption: 16-18W (not includes HDD and PoE)

Operating temperature: 0 - 55°C

Operating humidity: 10 - 90% RH

Dimensions: 360 x 255 x 55mm (1.5U height)

Weight: 2.5kg (not includes HDD)
