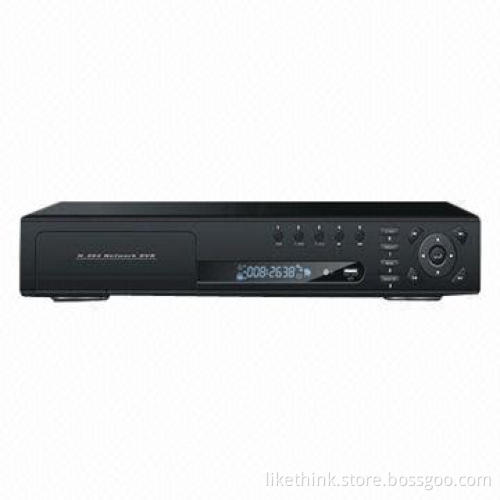

32CH DVR with 8 D1 and 24 CIF at 25fps Recording/24-hour Real-time Video, Supports VGA, HDMI, Onvif

Get Latest Price

Payment Type:: T/T, Western Union, MoneyGram or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram or PayPal

Product Description

Features:

Main processor: high-performance embedded microprocessor-HI3531
Operating system: Embedded Linux OS
Video compression format: H.264
Recording playback: maximum supports 16-channel synchronously playback
Display image resolution: 600/720fps 8D1 + 24CIF at 25fps
Motion detection can setup 192 (16 x 12 pieces) motion detection area each channel and multilevel sensitivity (1-6 levels are adjustable)
Display screen: 1/4/8/9/16/24/32 screen
Supports HDMI® (1,920 x 1,080P), BNC and VGA output
Privacy masking: depends on IPC
Audio compression format: ADPCM
Recording modes: manual recording, motion detection recording, time recording, alarm
Recording storage: HDD, network
Frame rate: 30fps
Digital input: (4 x 1,080P)/(1 x 1,080P + 8 x 720P)/(24 x D1)/(20 x 960H )/(2 x 1,080P + 4 x 720P+ 4 x 960H)
Backup modes: supports HDD, USB flash disk store and backup
Video: network video input 32-channel
Video output: 1 channel CVBS (BNC), 1 channel VGA and 1 channel HDMI®
Audio input: 8-channel IPC composite audio
Audio output: 1 channel (supports two-way audio)
Alarm input: 16-channel alarm input
Alarm output: 4-channel alarm output
Network: 1 x 10/100Mbps, RJ45 port
RS485: standard 485 ports, supports half-duplex, green terminal port
USB: 2 USB2.0 ports
HDD: supports 4 pieces SATA HDD inside (3,000G)
Power supply: +12V DC/5A
Power consumption range: 16-18W (not includes HDD and PoE)
Operating temperature: 0-55°C
Operating humidity range: 10-90% RH
Dimensions: 54 x 50.5 x 14.5mm (1.5U height)
Weight: 5.3kg (not including HDD)
