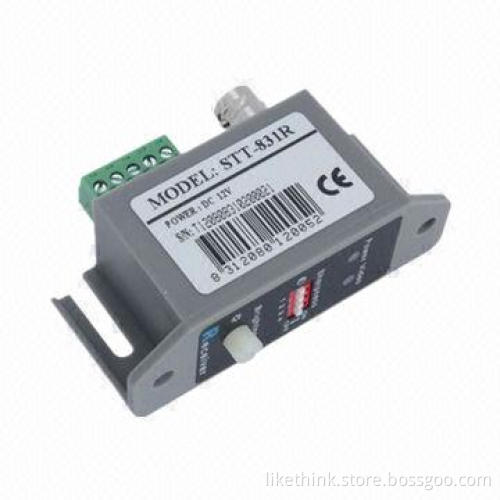

Video Balun with 2,400-meter Transmission Distance Without Power, Transmission of High-quality

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Differential signal transmission, excellent anti-jamming capability

Cost saving engineering cable, each pair twisted pair video signal in an ordinary unshielded twisted pair can simultaneously transmit four video signals

Used in conjunction with passive transceivers, transmission distance up to 1500 meters

With active transmitter (STT-831T) with the use of maximum transmission distance of up to 2,400m

For NTSC, PAL and SECAM formats such as

Built-in transient suppression protection

Modular design, applications more flexible, stand-alone installation, but also with the 19-inch 2U standard panel, installed in the cabinet

Frequency response: DC-8MHz

Insertion Loss: 0.5dB (typical)

Common mode rejection ratio: 60dB

Impedance:

BNC: 75Ω
RJ45: 100Ω

Power supply: 12V DC

Working temperature: -10 to +70℃

Storage temperature: -30 to +70℃

Dimensions: 75 x 34 x 25mm (excluding interface)

BNC: 75Ω

RJ45: 100Ω
