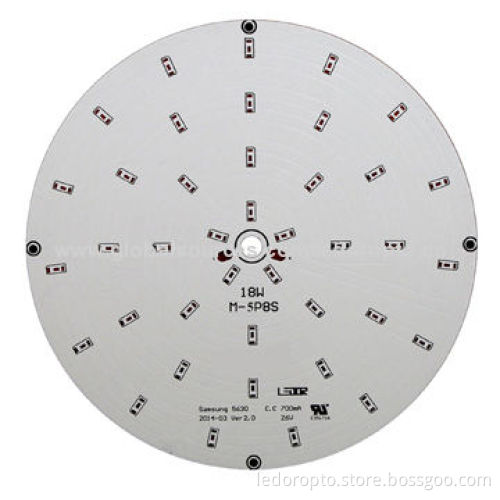

LD 18W ODM Aluminum PCB for Downlights with Samsung 5630 SMD Chip, 10 to 300V Test VoltageNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Cash

Product Description

Specifications:

Layers: 1 to 2

Thickness: 0.6-3.0mm

Thermal conductivity: 1.0-3.0 C/W

Materials: FR-4, aluminum

Surface finishing: HASL, immersion gold, silver and OSP

Soldermask types: white, black

Finishing board thickness: 0.2 to 3.2mm

Certifications: UL, RoHS

Copper thickness: 35 to 70um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.1mm

Maximum panel dimensions: 610 x 1200mm

Hole position tolerance: 0.075mm

Hole dimension tolerance: 0.05mm

Outline tolerance: 0.1mm

Warp and twist: ≤0.70%

Minimum soldermask bridge: 0.0635mm

Minimum distance between line to board bridge: 0.1mm

Impedance control tolerance: ±5%

Test voltage: 10 to 300V
