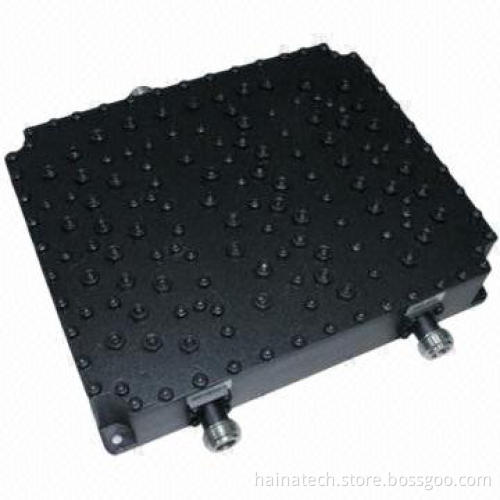

Combiner, GSM and DCS/TD (FA) and TD (E) High-intermodulation
  • Combiner, GSM and DCS/TD (FA) and TD (E) High-intermodulation
  • Combiner, GSM and DCS/TD (FA) and TD (E) High-intermodulation
Combiner, GSM and DCS/TD (FA) and TD (E) High-intermodulation
Combiner, GSM and DCS/TD (FA) and TD (E) High-intermodulation

Combiner, GSM and DCS/TD (FA) and TD (E) High-intermodulation

Get Latest Price
Payment Type:
T/T, L/C, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, PayPal
Product Description
Product Description
  • Electrical specifications:
    • Frequency range: GSM and DCS 885-960 and 1,710-1,830MHz TD (FA) and TD (E) 1,880-2,025 and 2,300-2,400MHz
    • Insertion loss ≤0.6dB
    • Ripple in band: ≤0.5dB
    • VSWR: ≤1.25
    • Isolation: ≥80dB
    • Power: 300W
    • Intermodulation: ≤-140dBc at ((3rd order with 2 x 20W)
    • Intermodulation: ≤-155dBc at ((3rd order with 2 x 20W)
    • Impedance: 50Ω
  • Environmental specifications:
    • Operating temperatures: -25 to 55°C
    • Storage temperatures: -40 to 85°C
    • Relative humidity range: 0-95% RH
    • Air pressures: 55-106kPA
    • Indoor or outdoor
  • Mechanical specifications:
    • Connectors: N-F
    • Surfacing black: painting
    • Dimensions: 183 x 149 x 36mm
    • Weight: 1.34kg
    • Packing: 1 piece/box
    • Remarks: Cu7Ag2
  • Frequency range: GSM and DCS 885-960 and 1,710-1,830MHz TD (FA) and TD (E) 1,880-2,025 and 2,300-2,400MHz
  • Insertion loss ≤0.6dB
  • Ripple in band: ≤0.5dB
  • VSWR: ≤1.25
  • Isolation: ≥80dB
  • Power: 300W
  • Intermodulation: ≤-140dBc at ((3rd order with 2 x 20W)
  • Intermodulation: ≤-155dBc at ((3rd order with 2 x 20W)
  • Impedance: 50Ω
  • Operating temperatures: -25 to 55°C
  • Storage temperatures: -40 to 85°C
  • Relative humidity range: 0-95% RH
  • Air pressures: 55-106kPA
  • Indoor or outdoor
  • Connectors: N-F
  • Surfacing black: painting
  • Dimensions: 183 x 149 x 36mm
  • Weight: 1.34kg
  • Packing: 1 piece/box
  • Remarks: Cu7Ag2
