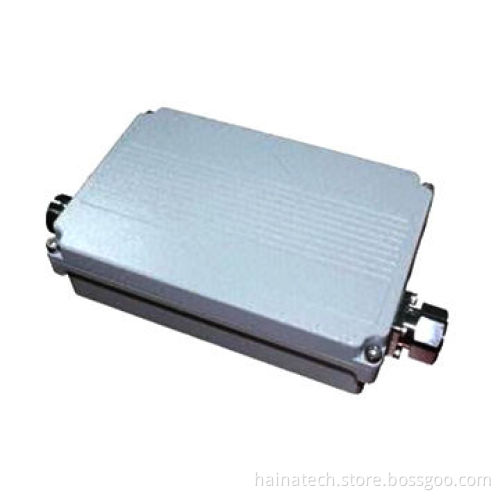

Filter, 885-909/930-954MHz, High Intermodulation

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Electrical specifications:

Environment specifications:

Mechanical specifications:

Frequency range: 885-909 & 930-954MHz

Insertion loss: 1.0dB at 885-909MHz, 0.5dB at 930-954MHz

Ripple: 0.8dB at 885-909MHz, 0.4dB at 930-954MHz

Return loss (VSWR): ≤-20dB/1.22

Rejection: ≥60dB at DC-880MHz, ≥80dB at 1710-2200MHz

Intermodulation: -150dBc at 2 x 20W

Power handling: 300W

Impedance: 50Ω

DC/AISG transparency: N/A

Lightning protection: N/A

Operating temperatures: -10 to 65°C

Relative humidity range: 0- 95%

Application: outdoor or indoor (IP66)

Connectors: 1pc DIN-female and 1pc DIN-male

Dimensions: 221 x 146 x 61.5mm (without connectors)

Weight: 2.14kg

Packing: 1pc/box
