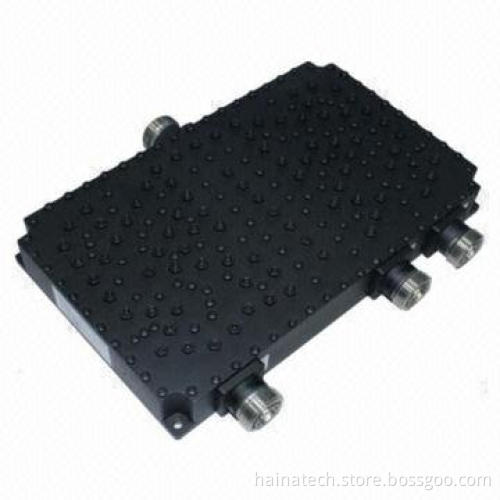

Combiner GSM and DCS/TD (AFE)/WLAN High-intermodulation, with 500W Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Specifications:

Electrical:
- Frequency range: GSM and DCS 885-960, 1,710-1,830 TD (AFE) 1,880-2,025 and 2,300-2,370 WLAN 2,400-2,500
- Insertion loss: ≤0.6dB
- Ripple in band: ≤0.5dB
- VSWR: ≤19dB/1.25
- Rejection: ≥80dB
- Intermodulation: ≤-150dBc (3rd order with 2 x 20W)
- Power: 500W
- Impedance: 50Ω
- DC/AISG path: NA
- Lightning protection: NA
Environment:
- Operating temperature: -25 to 65°C
- Storage temperature: -45 to 85°C
- Relative humidity: 5-95% RH
- Indoor/outdoor
Mechanical:
- Connectors: 4 pieces DIN-female
- Dimensions: 275 x 168 x 36mm (without connectors)

Weight: 2.3kg

Packing: 1 piece/box

Electrical:

Frequency range: GSM and DCS 885-960, 1,710-1,830 TD (AFE) 1,880-2,025 and 2,300-2,370 WLAN 2,400-2,500
Insertion loss: ≤0.6dB
Ripple in band: ≤0.5dB
VSWR: ≤19dB/1.25
Rejection: ≥80dB
Intermodulation: ≤-150dBc (3rd order with 2 x 20W)
Power: 500W
Impedance: 50Ω
DC/AISG path: NA
Lightning protection: NA
